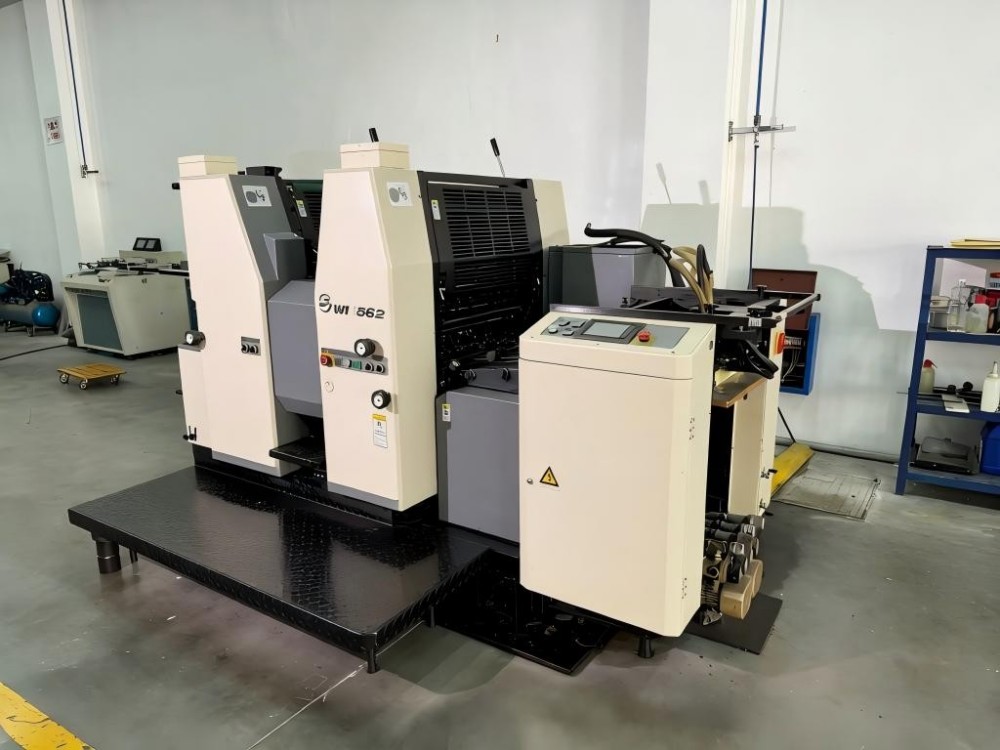

A2 Two-Color Self-Adhesive (Label) Sheet-fed Offset Printing
You can use this A2 Two-Color Self-Adhesive (Label) Sheet-fed Offset Printing machine for your offset jobs. Weihai Printing Machinery Co., Ltd. designed and built it. It takes A2 and larger sheets. It works well for making small to medium runs of high-quality printed products.

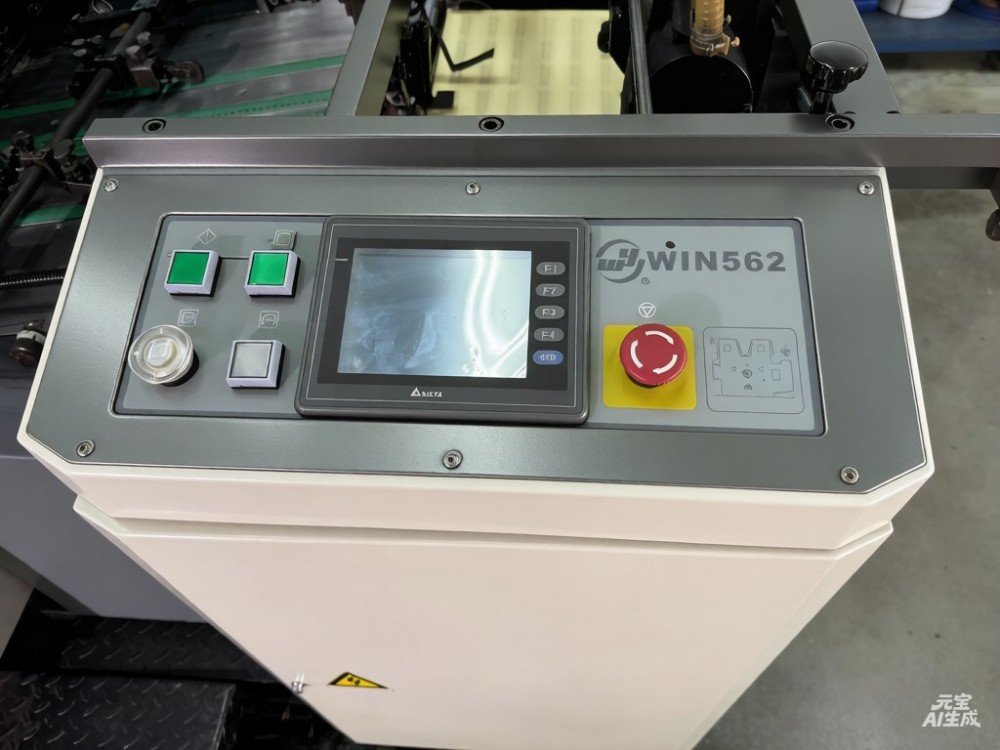

This is an A2 Two-Color Self-Adhesive (Label) Sheet-fed Offset Printing. It comes with a tough and durable structure. It uses a swing-arm feeder to take in paper. It moves paper forward in a steady way. Double-spring grippers stop paper from slipping. It works well for high-speed printing. It can print on both thin and thick paper. The touchscreen programing interface helps users change settings quickly.
Technical Parameters
| Max.Sheet Size(mm) | 560x400 | Rollers Quantity |
Ink Rollers 17 Water Rollers 4 |
| Min.Sheet Size(mm) | 200x155 | Gripper(mm) | 9±1 |
| Paper Thickness (mm) | 0.04-0.4 | Registration | Side Pulling Lays(DiagonalAdjustable) |
| Max.Print Area(mm) | 545x380 | Image Longitudinal Adjustment(mm) | ±20 |
| Printing Speed(sheet/h) | 3000-12000 | Image Longitudinal Fine Adjustment(mm) | ±1 |
| Print Size(mm) | 550x430 | Image Traversal Fine Adjustment(mm) | ±2 |
| Plate Thickness(mm) | 0.3 | Image Diagonal Fine Adjustment(mm) | ±0.15(At Max Printing Area) |
| Blanket Size(mm) | 568x450x1.9 | Lubrication System | Centralized |
| Cylinder Packing Size(mm) | 545x402x0.6 | Power Supply | 380V 50Hz 3-Phase |
| Feeder | Continuously Feeding | Power(kw) | 7.5 |
| Feeder Capacity(mm) | High 600(Weight 170kg) | Motor Power(kw) | Main Motor 5.5Air Pump Motor 0.75 |
| Stacker | Chain Transmission | Machine Size(mm) | 2700x2320x1710 |
| Stacker Capacity(mm) | High 430(Weight 135kg) | Weight(kg) | 3600 |
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |

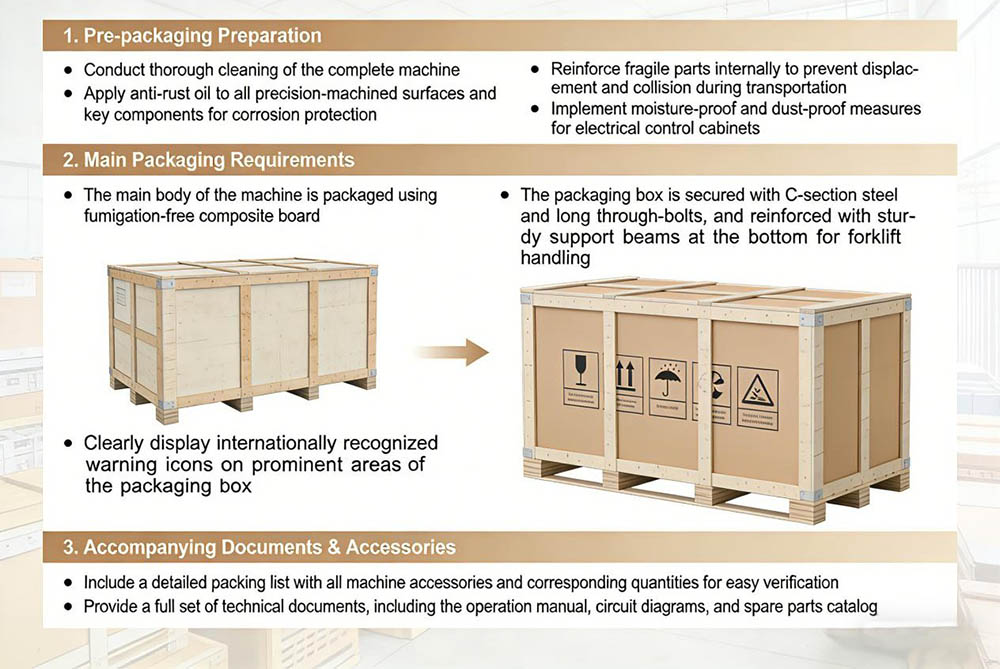

Machine Packaging Specifications Guide
Hot Tags: A2 Two-Color Self-Adhesive (Label) Sheet-fed Offset Printing
