A3 Cut Sheet Printing Machine Single Color
  • A3 Cut Sheet Printing Machine Single ColorA3 Cut Sheet Printing Machine Single Color

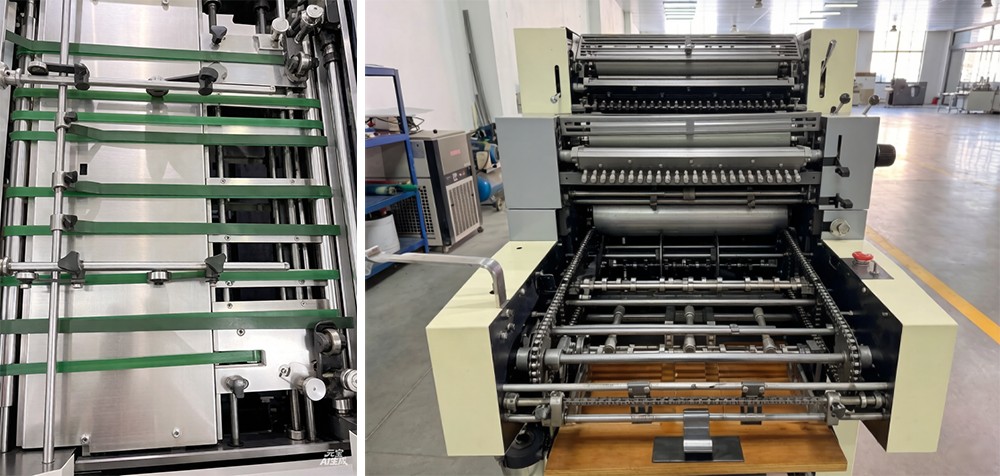

A3 Cut Sheet Printing Machine Single Color

Weihai Printing Machinery Co., Ltd. makes this A3 Cut Sheet Printing Machine Single Color—one that’s been around for years, solid and dependable for monochrome offset jobs. It’s built to handle precise printing jobs no-stop day in and day out. Standard A3 paper (500×365mm) fits right in, and the horizontal paper feeder keeps paper gliding through smoothly, no jams, and lines it up perfectly every time. That reliability shows in your prints, each print batch comes out just as consistent as the last one. Whether you’re cranking out big runs of documents, brochures, or simple monochrome promo pieces, this A3 Cut Sheet Printing Machine Single Color won’t let you down. For small and medium print shops, even offices that need high-speed monochrome printing done right, it’s a no-brainer, trustworthy choice.

Weihai Printing Machinery builds the A3 Cut Sheet Printing Machine Single Color—and it’s well-liked in the monochrome offset field, perfect for 500×365mm paper. It uses horizontal paper feeding, paired with a tough paper transport system and precise positioning. That combination makes this A3 Cut Sheet Printing Machine Single Color a really solid, well-made piece of equipment—even when it’s running at high speed, it cranks out top-quality prints every time. It’s mostly used for printing text-heavy documents and books, and it’s got a great reputation in the industry because it’s so efficient. Whether you‘re printing books, magazines, official papers, business forms, transaction docs, or packaging, this machine handles all monochrome jobs easily, and the print quality never dips.

Technical Parameters

Max.Paper Sizes(mm) 500x365 Feeder System Pneumatic with 12 suction cups
Mini.Paper Sizes(mm) 90×140 Delivery System Chain transmission
Paper Thickness(mm) 0.04-0.3 Ink &Water Rollers 10 Ink Rollers and 4 Water Rollers
Max.Print Area(mm) 470x350 Dampening Method Molleton Dampening Cover
Printing Speed(s/h) 3000-9000 Power Supply(kw) Main Motor 0.75Pneumatic Motor 0.42
Plate Size(mm) 490x400 Overall Sizes(mm) 1900x1100x1400
Plate Thickness(mm) 0.15 Weight(kg) 660
Blanket Sizes(mm) 496×422x1.65

Product Features

The A3 Cut Sheet Printing Machine Single Color from Weihai Printing Machinery is built to perform, with features that make printing easy and consistent. It has a high-power variable frequency speed control motor and a PLC programming device, so it runs smoothly and responds quickly when you need to change speeds. The paper registration is spot-on, thanks to the roller-to-roller pull guide mechanism and micro-adjustment knobs on the operating side—ideal for pre-printed forms and multipage tables that need precision. It also has double-spring gripper fingers, which hold thick paper tight, great for heavy ink printing on thick paper or writing paper. And to keep prints looking sharp during high-speed runs, it has a powder spraying device to prevent smudging, an electrostatic elimination device for temperature-related static, and a unique anti-scratch, anti-smudge design.

Why Choose Us?

Dimension Reasons for Choosing Us Competitor Gap
Quality Assurance 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy
EfficiencyImprovement High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs
Cost Optimization Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% High consumable and maintenance costs,frequent downtime affecting delivery
FlexibleAdaptation Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders Poor adaptability,additional investment required to switch business types
Service &Reputation Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours Weak service network,missing or delayed overseas after-sales support
