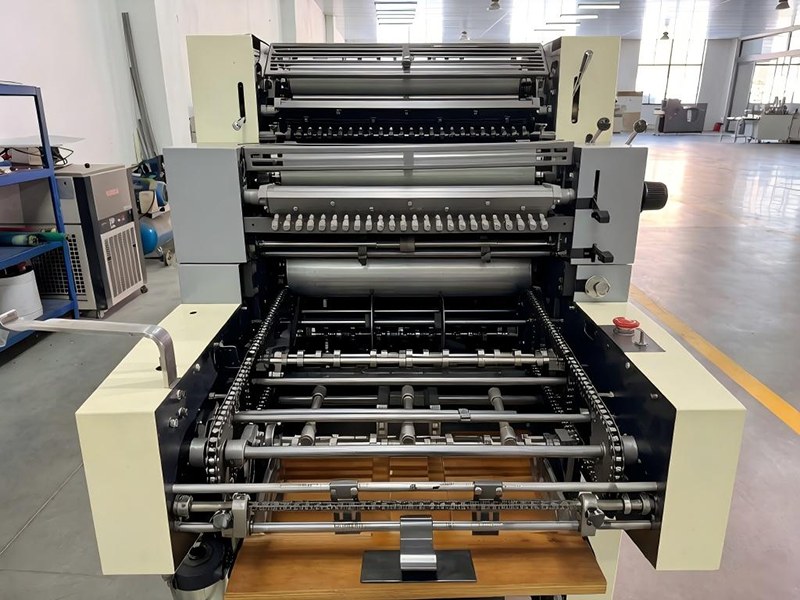

A3 Single-Color Sheet-fed Offset Printing Press
Weihai Printing Machinery puts care into making this A3 Single-Color Sheet-fed Offset Printing Press—it’s a classic monochrome machine that wraps stability, efficiency, and accuracy into one. Its 500×365mm size covers A3 and smaller monochrome jobs, and the horizontal paper feeder is designed to be practical: keeps paper moving smooth, lines it up right, and that boosts both printing speed and how many good prints you get. It runs steady, is easy to maintain, and you don’t need fancy professional skills to operate it. That saves businesses money on labor and keeps printing jobs running without interruptions—exactly what you need for high-speed monochrome sheet-fed printing.
This A3 Single-Color Sheet-fed Offset Printing Press, independently designed and manufactured by Weihai Printing Machinery Co., Ltd., has a good reputation in the industry and is specifically suitable for paper of 500×365mm. It adopts horizontal paper feeding technology, with a solid and durable paper transport system and a precise positioning mechanism. It’s a truly mature and sophisticated equipment that can run at high speed while producing high-quality products. This machine is mainly used to print documents and books focused on textual information, and it has always had a great reputation—whether it’s books, magazines, official documents, or monochrome printed materials like business forms, transaction documents, and packaging accessories, the A3 Single-Color Sheet-fed Offset Printing Press can handle them efficiently with excellent printing results.
Technical Parameters
| Max.Paper Sizes(mm) | 500x365 | Feeder System | Pneumatic with 12 suction cups |
| Mini.Paper Sizes(mm) | 90×140 | Delivery System | Chain transmission |
| Paper Thickness(mm) | 0.04-0.3 | Ink &Water Rollers | 10 Ink Rollers and 4 Water Rollers |
| Max.Print Area(mm) | 470x350 | Dampening Method | Molleton Dampening Cover |
| Printing Speed(s/h) | 3000-9000 | Power Supply(kw) | Main Motor 0.75Pneumatic Motor 0.42 |
| Plate Size(mm) | 490x400 | Overall Sizes(mm) | 1900x1100x1400 |
| Plate Thickness(mm) | 0.15 | Weight(kg) | 660 |
| Blanket Sizes(mm) | 496×422x1.65 |
|
|
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
