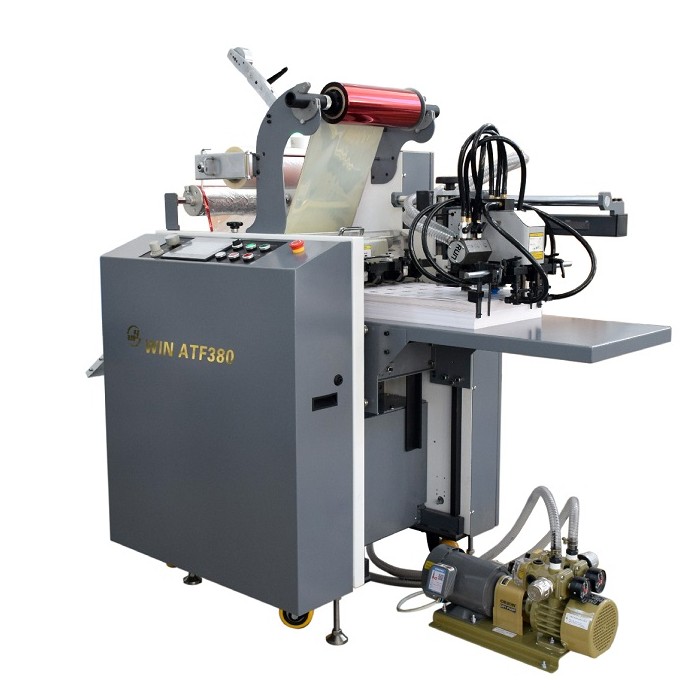

380mm Sheet-Fed Laminating and Foiling Press

The 380mm Sheet-Fed Laminating and Foiling Press produced by Weihai Printing Machinery Co., Ltd. has a compact design and features fully automatic laminating and hot stamping functions. It is mainly used for digital prints, and can also automatically laminate and hot stamp offset prints, transforming ordinary printed materials into exquisite products. It adheres to strict technical standards, automatically controlling pressure and heating temperature during production to meet different printing requirements and achieve the best results. This is an excellent all-in-one automatic plate-free laminating and foiling press machine. The equipment is easy to operate with full automation, allowing for the selection of different laminating specifications and stamping rollers, making it suitable for various print sizes and adding extra value to printed materials.

Technical Parameters

Product Features

1)The system has a unique automatic pulse snapping film separation system. The edges of the laminate are first micro-perforated, then laminated sheets are automatically broken off by the pneumatic punching rollers triggered by a pre-programmed snapping burst rate to achieve easy paper separation with neat edges.
2)The system is equipped with a high-efficiency automatic feeder that continuously feeds sheets, significantly improving production efficiency.
3)The system is equipped with an automatic anti-curling device, ensuring sheets of various types stay flat during the automatic laminating or metal foiling process.
4)The system has an automatic control system that adjusts the heating temperature and pressure of the pneumatic roller applied on sheets, achieving better adhesion between the laminate and paper without manual intervention.
5)The system is ingeniously designed with a hot stamping roller assembly, allowing for simultaneous loading of laminating film rolls and metal foiling rolls. This unique design enables automatic and convenient switching between the laminating process and the metal foiling process.
6)The system has a touchscreen with an intuitive interface program, enabling easy setting and control of automatic operational speed and temperature.

Application Scope

A. Perfect Automatic Lamination
It’s been proven that the 380mm Sheet-Fed Laminating and Foiling Press achieves superior adhesion between lamination film and sheets through automatic lamination, and provides high production efficiency secured by an industry-leading automatic lamination technology in combination with 35.5 N/mm pneumatic pressure. Furthermore, its automatic adjustment of heating temperature and roller pressure allows for a wide range of lamination materials, suitable for various printed materials such as book covers, brochures, posters, and manuals.

B.Impressive Automatic Metal Foiling Lamination Holographic Effects
The 380mm Sheet-Fed Laminating and Foiling Press is capable of automatically hot stamping metallic and colored patterns without traditional hot stamping plates. It is suitable not only for short-run on-demand digital applications but also for traditional lithographic offset outputs as well. It uses holographic films to automatically create dot and water ripple patterns, making printed materials even more exquisite.

C.Unique Automatic Decorative Effects
Lamination films are specially corona-treated, which are used as automatic post-processing for digital printing outputs to achieve a combination of automatic lamination and hot stamping for exquisite decorative effects.

Consumables

A. Lamination Materials
Customers are provided with a wide range of lamination films and metal foils such as high-gloss, matte etc. Specially treated pre-coated films are suitable for both offset and digital printed materials;

B.Hot Stamping Foils
They come with metallic effect foils such as gold, silver, copper, chrome, rose gold etc., as well as colored foils such as red, green, blue, violet, black, white, transparent, and many others.

C.Holographic Hot Stamping Foils
They include laser holographic foils with dazzling, dynamic, and three-dimensional holographic patterns.
