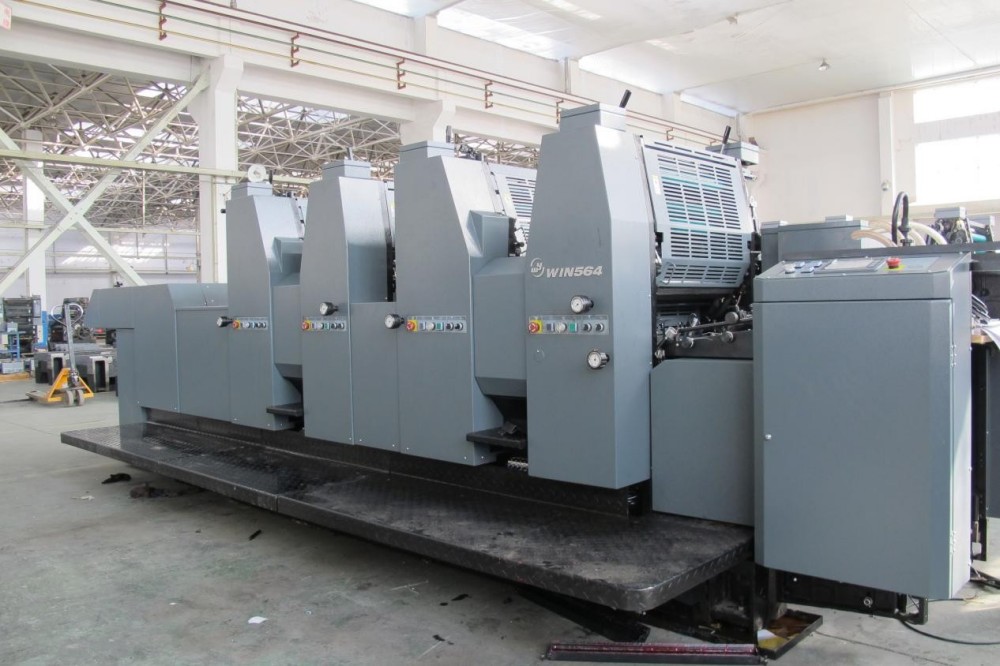

A2 Four-Color Short-run Printing Offset Printing Press
Weihai Printing Machinery Co. Ltd. makes this premium four-color cut-sheet offset press, which we call the A2 Four-Color Short-run Printing Offset Printing Press. It’s built to print on A2 sheets and bigger, and it turns out high-quality image prints at high speed without slowing down, perfect for short-run printing needs. It’s pretty versatile, honestly—you can run almost any substrate through it. This means it’s great for making medium to high-end commercial items and packaging, like self-adhesive labels, high-end business cards, brochures, book covers, and color inserts.

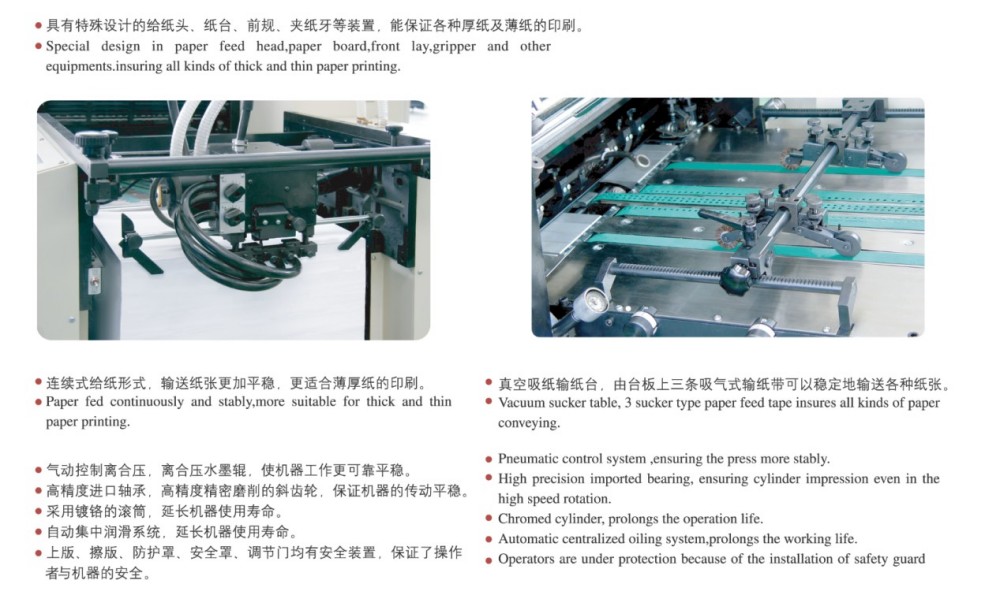

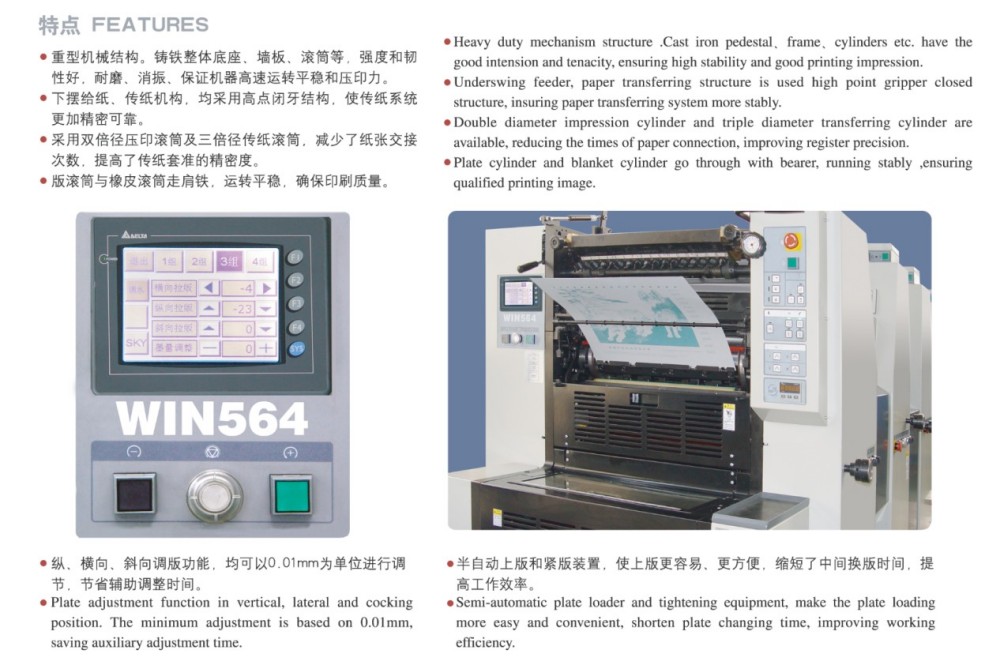

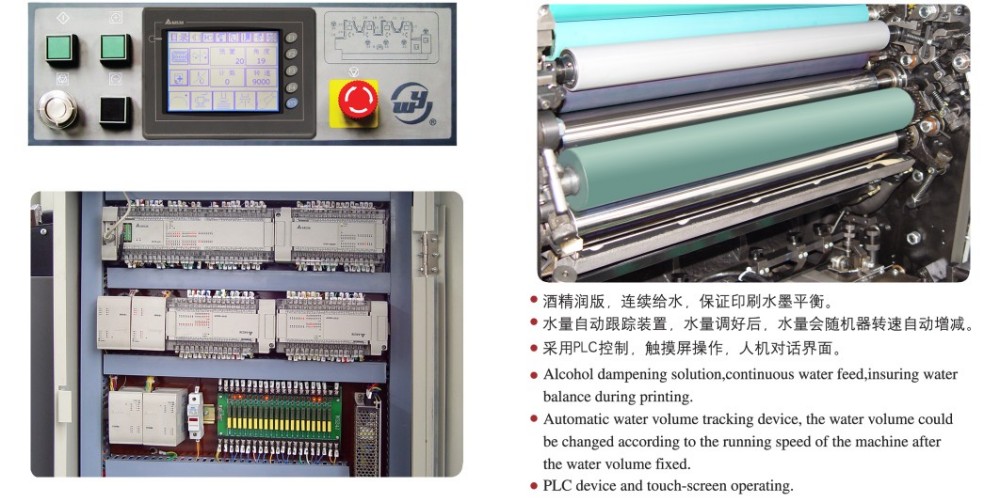

When it comes to the A2 Four-Color Short-run Printing Offset Printing Press, it’s built with high-performance modules that make it reliable—perfect for short-run printing tasks. These modules include high-precision rollers and gears, a robust paper feeding mechanism, a precise paper registration system, and a steady ink supply system. It meets the market’s needs for cut-sheet color printing that’s high-quality, efficient, and cost-effective, especially for short-run jobs. It can handle a broad range of paper thicknesses—from 0.04mm thin paper to 0.4mm thick cardboard. And with its touchscreen control and intuitive programming interface, you can easily make smart adjustments to all the settings and printing parameters.
Technical Parameters
| Max.Sheet Size(mm) | 520x375 | Rollers Quantity | Ink Rollers 17Water Rollers 4 |
| Min.Sheet Size(mm) | 200x155 | Gripper(mm) | 9±1 |
| Paper Thickness(mm) | 0.04-0.4 | Registration | Side Pulling Lays(DiagonalAdjustable) |
| Max.Print Area(mm) | 505×350 | Image Longitudinal Adjustment(mm) | ±20 |
| Printing Speed(sheet/h) | 3000-12000 | Image Longitudinal Fine Adjustment(mm) | ±1 |
| Print Size(mm) | 510x400 | Image Traversal Fine Adjustment(mm) | ±2 |
| Plate Thickness(mm) | 0.3 | Image Diagonal Fine Adjustment(mm) | ±0.15(At Max Printing Area) |
| Blanket Size(mm) | 528x437x1.9 | Lubrication System | Centralized |
| Cylinder Packing Size(mm) | 505x389x0.6 | Power Supply | 380V 50Hz Three-Phase |
| Feeder | Continuously Feeding | Power(kw) | 12 |
| Feeder Capacity(mm) | High 600(Weight 170kg) | Motor Power(kw) | Main Motor 11Air Pump Motor 0.75 |
| Stacker | Chain Transmission | Machine Size(mm) | 4200x2300x1710 |
| Stacker Capacity(mm) | High 430(Weight 135kg) | Weight(kg) | 8000 |
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
