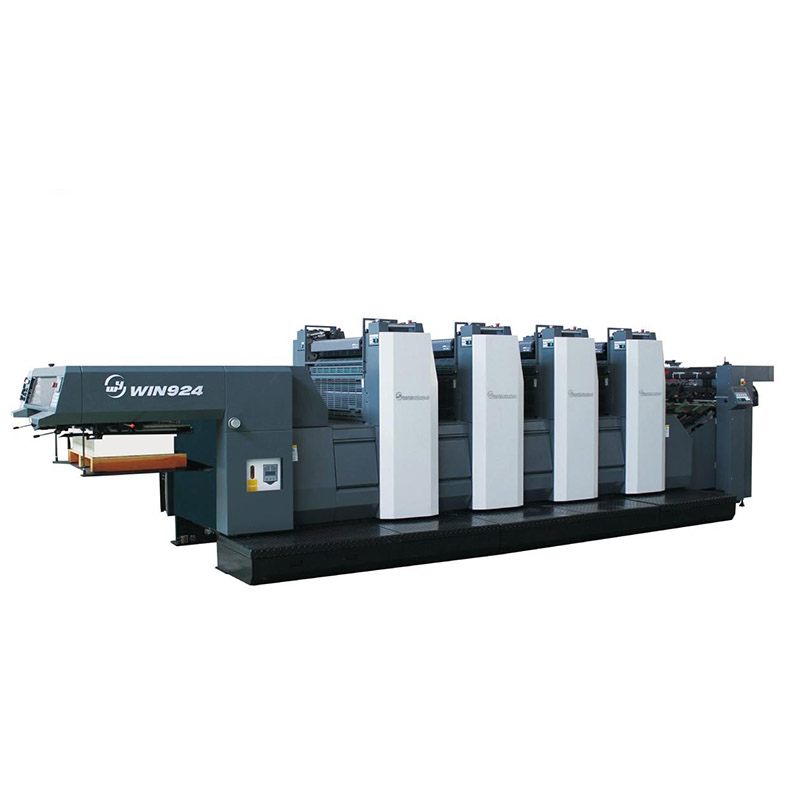

Large A1 Alcohol Dampening Four-Color Offset Printing Press

This Large A1 Alcohol Dampening Four-Color Offset Printing Press comes from Weihai Printing Machinery Co., Ltd. It supports A1 and bigger paper sizes. It can handle paper size up to 920mm×625mm. The printing area reaches 900mm×615mm. It has strong structure fit with high-precision parts. It prints well on both thin and thick paper stocks. It uses a smart touchscreen control system. This Large A1 Alcohol Dampening Four-Color Offset Printing Press is reliable for long and short run commercial and packaging printing jobs.

High quality,Reasonable pirce for your choice

Suitable printing paper size.The max.paper size is 920mmx625mm, the max.printing size is 900mmx615mm,suitable for A1 paper printing and 8 pages of A4 paper printing,this machine is enough of most printing job requirement.
High production efficiency.The max.printing speed is 13000sheet/hour,which is applicable for regular production,suitable for both small and big quantity printing work
Greatly reduced the production cost.The material cost is determined by printing paper size and printing area, comparing with the other machines, a great expense will be saved yearly

Vacuum suction table. Saving the Pager changing time by only easily adjusting the brush and rotation wheel,the paper feeding tape insures paper conveying safely and stably.

Water and ink fountain roller is controlled by program and drived by motor,keeping the same timing with printing speed,and providing the stable ink volume and dampening solution.
Cylinder ON/OFF controlled pneumatically,take good use of machine space,improved the stability,and reduced the vibration and noise.
Semi-automatic plate loader,make the plate loading more quicker and exactly,reduce the plate loading time.

Plate register remote control device. Automatic plate micro adjustment in vertical, lateral and diagonal, quick and convenient for image setting. Micro computer control, touch screen to fully control and monitor all functions during printing.
Alcohol dampening system, improve color transfer, insure the printing quality.
Unit type separated frame & basement, convenient for unit matching, exchangeable and cost reduced Remote ink console, insures the quick response when color is going to be changed.
Auto blanket washing and auto ink roller cleaning device, shorten the washing and color changing time, improve the working efficiency and reduce the labor work

Heavy duty mechanism structure. Cast iron pedestal, frame, cylinder etc. have the good intension and tenacity, ensuring high stability and good printing impression.
High precision import bearing, ensuring printing quality even in high speed rotation.
Advanced structure and functions,SEVEN o'clock cylinder arrangement,double diameter impression and transferring cylinder design,more suitable for thicker paper printing.
