A2 Four-Color Commercial Printing Offset Press
A2 Four-Color Commercial Printing Offset Press is a four-color cut-sheet premium offset printing press from Weihai Printing Machinery Co. Ltd., it prints on A2 and larger sheet format and can produce image prints with excellent quality and high efficiency. The press works on almost all substrates to produce medium to high end commercial and packaging printing products such as self-adhesive labels, high-end business cards, brochures, book covers, and color inserts.

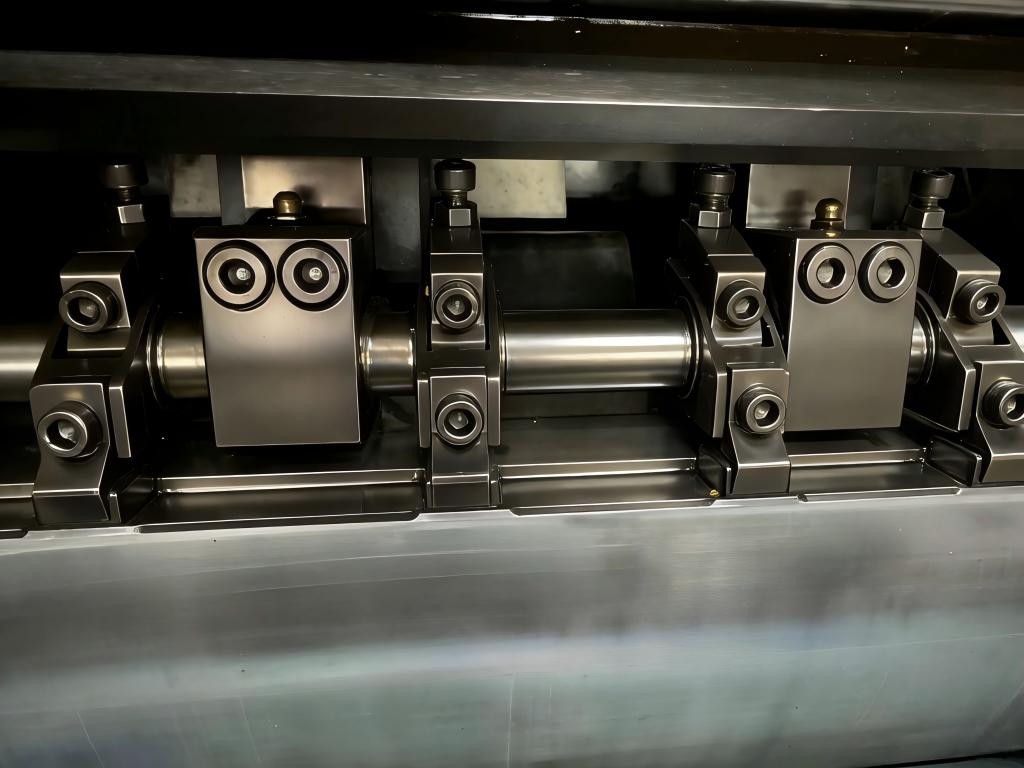

The A2 Four-Color Commercial Printing Offset Press is set up with high-performance modules—things like high-precision rollers and gears, a tough paper feeding mechanism, a super accurate paper registration system, and a steady ink supply system. It’s made to fit what the market needs: high-quality, efficient, and cost-effective cut-sheet color printing. You can run all kinds of paper through it, from thin 0.04mm paper to thick 0.4mm cardboard. Plus, it has a touchscreen control with an easy-to-use programming interface, so you can adjust settings and printing parameters smartly without any hassle.
Technical Parameters
| Max.Sheet Size(mm) | 520x375 | Rollers Quantity | Ink Rollers 17Water Rollers 4 |
| Min.Sheet Size(mm) | 200x155 | Gripper(mm) | 9±1 |
| Paper Thickness(mm) | 0.04-0.4 | Registration | Side Pulling Lays(DiagonalAdjustable) |
| Max.Print Area(mm) | 505×350 | Image Longitudinal Adjustment(mm) | ±20 |
| Printing Speed(sheet/h) | 3000-12000 | Image Longitudinal Fine Adjustment(mm) | ±1 |
| Print Size(mm) | 510x400 | Image Traversal Fine Adjustment(mm) | ±2 |
| Plate Thickness(mm) | 0.3 | Image Diagonal Fine Adjustment(mm) | ±0.15(At Max Printing Area) |
| Blanket Size(mm) | 528x437x1.9 | Lubrication System | Centralized |
| Cylinder Packing Size(mm) | 505x389x0.6 | Power Supply | 380V 50Hz Three-Phase |
| Feeder | Continuously Feeding | Power(kw) | 12 |
| Feeder Capacity(mm) | High 600(Weight 170kg) | Motor Power(kw) | Main Motor 11Air Pump Motor 0.75 |
| Stacker | Chain Transmission | Machine Size(mm) | 4200x2300x1710 |
| Stacker Capacity(mm) | High 430(Weight 135kg) | Weight(kg) | 8000 |
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
Customer Services
Production Tracking
We track the whole production process of all equipment in accordance with our in-house quality assurance procedures to ensure manufacturing quality and on-time delivery.
On-site Installation & Commissioning
Our professional engineers provide immediate on-site installation and commissioning upon equipment arrival to ensure it meets preset performance standards.
Spare Parts Inventory
We maintain a complete spare parts inventory to ensure timely supply, minimize machine downtime, and keep your production running smoothly.
Technical Support & Documentation
We offer detailed instruction manuals, parts catalogs, and professional technical support documents to answer any operational questions in a timely manner.
Machine Packaging Specifications Guide
