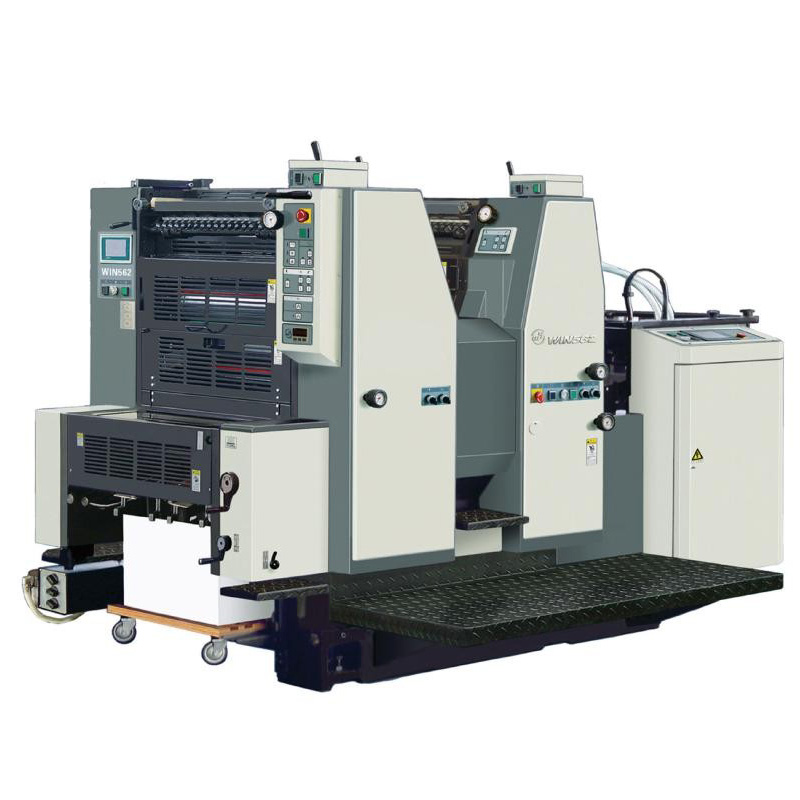

Large A3 Two-Color Label Printing Press
Designed and made by Weihai Printing Machinery Co., Ltd., the Large A3 Two-Color Label Printing Press supports sheets larger than A3 and comes with a quick plate-changing function for smooth operation. It’s been tested to be highly efficient and economical for commercial printing—especially ideal for label printing, covering everything from ordinary to high-end image prints, small-to-medium batch jobs, two-color or spot color printing, business cards, labels, packaging, and beyond. It works well with various papers, such as thick and thin sheets, self-adhesive labels, and cards.
Weihai Printing Machinery Co., Ltd. designed the Large A3 Two-Color Label Printing Press to be a reliable choice for commercial printing—especially ideal for label printing. It’s made for medium to high-end image prints, small-to-medium batches, and two-color or spot color jobs, and it supports sheets larger than A3. Its swing-arm feeding mechanism, continuous paper feed, and double-spring grippers keep it running smoothly and fast—even with different paper types, thin, thick, or those with special surface treatments, including self-adhesive label paper. It prints well, works fast, and fits easy operational budget. The intuitive touchscreen makes it easy for any operator to program settings and check errors.
Technical Parameters
| Max.Sheet Size(mm) | 520x375 | Rollers Quantity |
Ink Rollers 17 Water Rollers 4 |
| Min.Sheet Size(mm) | 200x155 | Gripper(mm) | 9±1 |
| Paper Thickness(mm) | 0.04-0.4 | Registration | Side Pulling Lays(Diagonal Adjustable) |
| Max.Print Area(mm) | 505x350 | Image Longitudinal Adjustment(mm) | ±20 |
| Printing Speed(sheet/h) | 3000-12000 | Image Longitudinal Fine Adjustment(mm) | ±1 |
| Print Size(mm) | 510x400 | Image Traversal Fine Adjustment(mm) | ±2 |
| Plate Thickness(mm) | 0.3 | Image Diagonal Fine Adjustment(mm) | ±0.15(At Max Printing Area) |
| Blanket Size(mm) | 528×437x1.9 | Lubrication System | Centralized |
| Cylinder Packing Size(mm) | 505x389x0.6 | Power Supply | 380V 50Hz 3-Phase |
| Feeder | Continuously Feeding | Power(kw) | 7.5 |
| Feeder Capacity(mm) | High 600(Weight 170kg) | Motor Power(kw) | Main Motor 5.5Air Pump Motor 0.75 |
| Delivery System | Chain Transmission | Machine Size (mm) | 2700×2230x1710 |
| Delivery Capacity(mm) | High 430(Weight 135kg) | Weight(kg) | 3500 |
Product Features

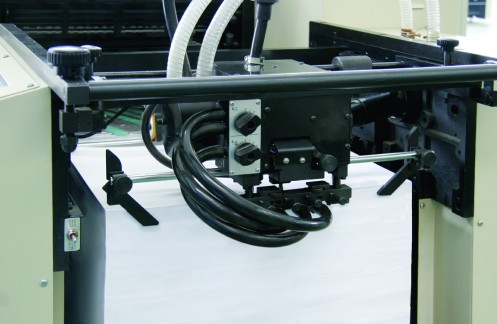

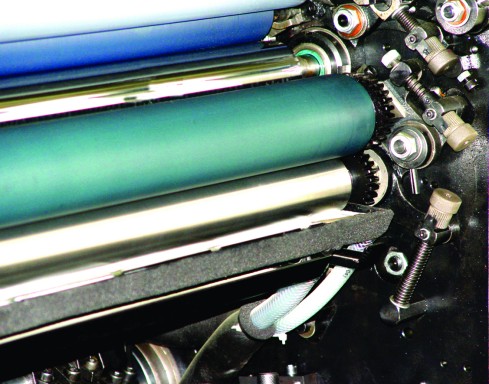

Our Large A3 Two-Color Label Printing Press works seamlessly with all paper varieties, thin or thick, all down to its intelligent paper transport components. The paper feeding head, vacuum suction table, front guide and paper grippers coordinate flawlessly, making sure every single paper handling process is spot-on. We’ve fitted pneumatic control for the clutch and clutch pressure ink rollers, so this Large A3 Two-Color Label Printing Press boasting stable nonstop operation and far more reliable overall performance.
The paper delivery section comes with air nozzles and suction wheels as well, so paper stacking is always precise—whether you’re running the machine at high speed or a slower pace. What’s more, the press is built with high-precision bearings and helical gears, which make power transmission smooth and consistent with no hitches. Its chromed printing cylinders have outstanding wear resistance, effectively extending the machine’s service life and cutting down on your daily maintenance expenses significantly.
Safety is never an afterthought in the design of our Large A3 Two-Color Label Printing Press. We’ve integrated dedicated safety devices into key parts like plate mounting and protective covers, offering all-round protection for both the operators and the machine itself during daily operation.
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
