HOME > Products

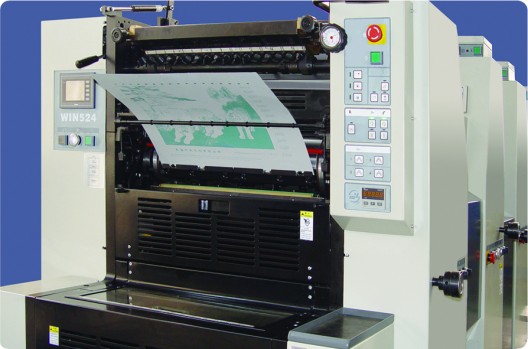

Two-Color Self-Adhesive (Label) Sheet-fed Offset Printing Press
Weihai Printing Machinery Co., Ltd. designed and built the Two-Color Self-Adhesive (Label) Sheet-fed Offset Printing Press to handle sheets larger than A3, with quick plate changing to speed up your work. It’s a great pick if you want efficiency and value for commercial printing—ideal for self-adhesive label printing, as well as ordinary and high-end image prints, small-to-medium batch jobs, two-color or spot color prints, business cards, packaging, and other uses. It works with all sorts of papers, thick or thin, especially self-adhesive labels and cards.

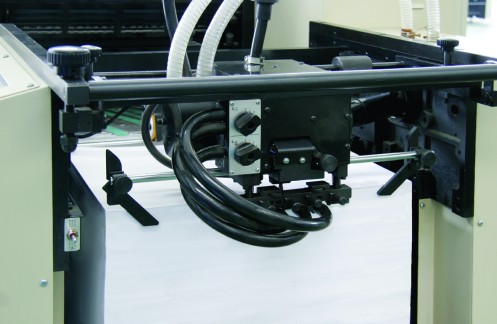

If you want a high-performance offset press that doesn’t break the bank, go for the Two-Color Self-Adhesive (Label) Sheet-fed Offset Printing Press from Weihai Printing Machinery Co., Ltd. It’s great for medium to high-end image prints, small-to-medium batches, and two-color or spot color jobs—especially self-adhesive label printing—and it handles sheets bigger than A3 with no trouble. It has a swing-arm feeder, continuous paper feed, and double-spring grippers, so it prints fast and still delivers great quality. It works with any paper, thin or thick, even self-adhesive label paper and those with different surface treatments. The touchscreen is simple to use, too—operators can set parameters and check errors in a flash. It’s efficient, dependable, and covers all your commercial printing needs, especially label-related jobs.
Technical Parameters
| Max.Sheet Size(mm) | 520x375 | Rollers Quantity |
Ink Rollers 17 Water Rollers 4 |
| Min.Sheet Size(mm) | 200x155 | Gripper(mm) | 9±1 |
| Paper Thickness(mm) | 0.04-0.4 | Registration | Side Pulling Lays(Diagonal Adjustable) |
| Max.Print Area(mm) | 505x350 | Image Longitudinal Adjustment(mm) | ±20 |
| Printing Speed(sheet/h) | 3000-12000 | Image Longitudinal Fine Adjustment(mm) | ±1 |
| Print Size(mm) | 510x400 | Image Traversal Fine Adjustment(mm) | ±2 |
| Plate Thickness(mm) | 0.3 | Image Diagonal Fine Adjustment(mm) | ±0.15(At Max Printing Area) |
| Blanket Size(mm) | 528×437x1.9 | Lubrication System | Centralized |
| Cylinder Packing Size(mm) | 505x389x0.6 | Power Supply | 380V 50Hz 3-Phase |
| Feeder | Continuously Feeding | Power(kw) | 7.5 |
| Feeder Capacity(mm) | High 600(Weight 170kg) | Motor Power(kw) | Main Motor 5.5Air Pump Motor 0.75 |
| Delivery System | Chain Transmission | Machine Size (mm) | 2700×2230x1710 |
| Delivery Capacity(mm) | High 430(Weight 135kg) | Weight(kg) | 3500 |
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |

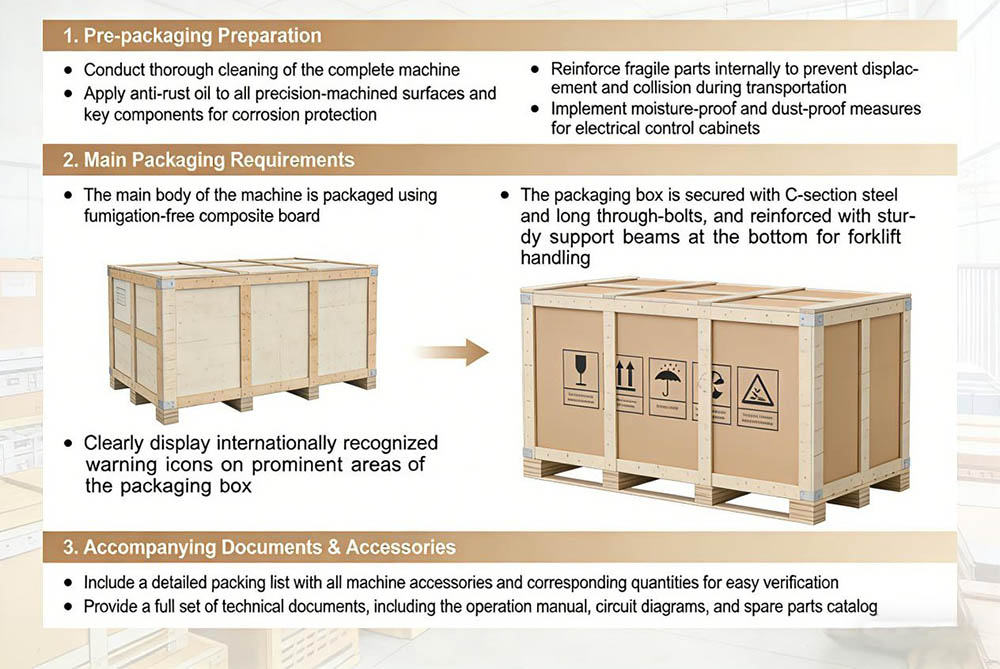

Machine Packaging Specifications Guide
Hot Tags: Two-Color Self-Adhesive (Label) Sheet-fed Offset Printing Press
