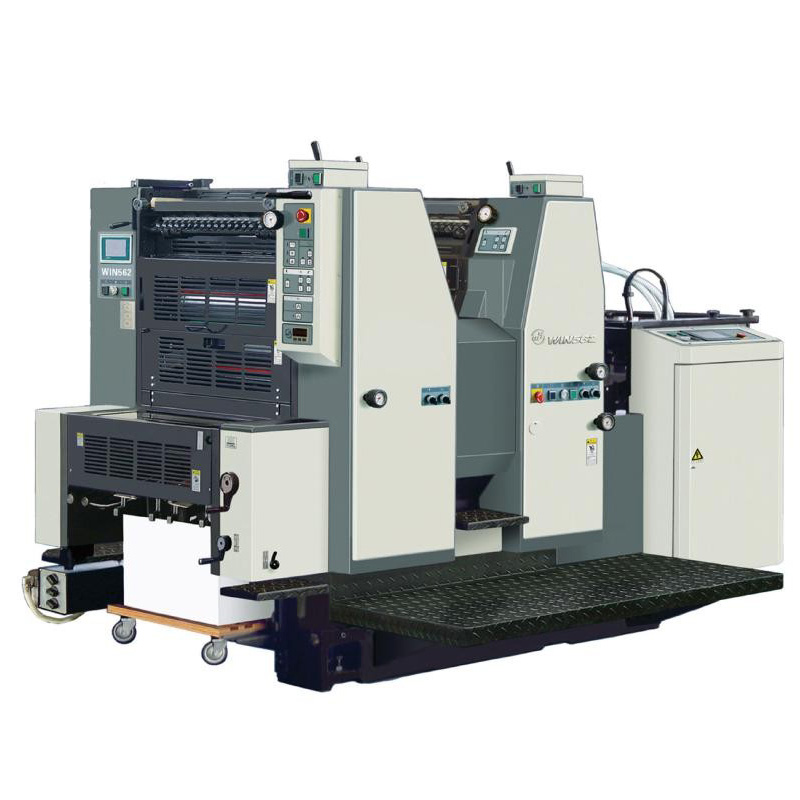

Large A3 Two-Color Quick Plate Change Offset Printing Press
From Weihai Printing Machinery Co., Ltd., the Large A3 Two-Color Quick Plate Change Offset Printing Press is all about precision. It handles sheets bigger than A3 and has a fast plate-changing feature to keep things moving fast—true to its quick plate change design. You can count on it for consistent, top-quality prints, and it’s easy on the budget—perfect for all your commercial printing needs. That includes ordinary and high-end image prints, small-to-medium batch tasks, two-color or spot color work, business cards, labels, packaging, and more. It works great with all kinds of substrates too, thin or thick paper stock, even self-adhesive labels and cards.

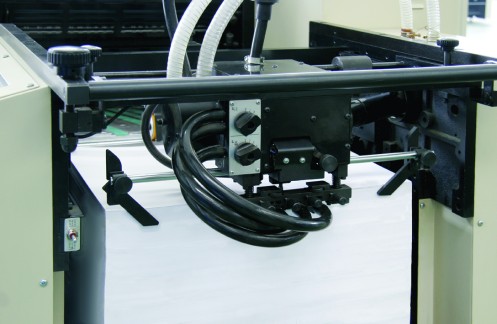

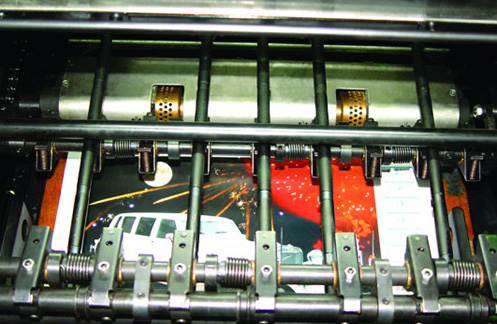

Weihai Printing Machinery Co., Ltd. makes the Large A3 Two-Color Quick Plate Change Offset Printing Press, and it’s built for precise prints every time. It’s great for medium to high-end image jobs, small-to-medium batches, and two-color or spot color printing—even handles sheets bigger than A3 easily. It has a swing-arm feeder, continuous paper feed, and double-spring grippers, so it prints fast without losing quality. It works with all kinds of paper, thin or thick, even those with different surface treatments. The touchscreen program is easy to use too—operators can set parameters and check events in no time. It’s efficient, saves money, and prints really well.
Technical Parameters
| Max.Sheet Size(mm) | 520x375 | Rollers Quantity |
Ink Rollers 17 Water Rollers 4 |
| Min.Sheet Size(mm) | 200x155 | Gripper(mm) | 9±1 |
| Paper Thickness(mm) | 0.04-0.4 | Registration | Side Pulling Lays(Diagonal Adjustable) |
| Max.Print Area(mm) | 505x350 | Image Longitudinal Adjustment(mm) | ±20 |
| Printing Speed(sheet/h) | 3000-12000 | Image Longitudinal Fine Adjustment(mm) | ±1 |
| Print Size(mm) | 510x400 | Image Traversal Fine Adjustment(mm) | ±2 |
| Plate Thickness(mm) | 0.3 | Image Diagonal Fine Adjustment(mm) | ±0.15(At Max Printing Area) |
| Blanket Size(mm) | 528×437x1.9 | Lubrication System | Centralized |
| Cylinder Packing Size(mm) | 505x389x0.6 | Power Supply | 380V 50Hz 3-Phase |
| Feeder | Continuously Feeding | Power(kw) | 7.5 |
| Feeder Capacity(mm) | High 600(Weight 170kg) | Motor Power(kw) | Main Motor 5.5Air Pump Motor 0.75 |
| Delivery System | Chain Transmission | Machine Size (mm) | 2700×2230x1710 |
| Delivery Capacity(mm) | High 430(Weight 135kg) | Weight(kg) | 3500 |
Product Features
This machine is all about efficiency and top-notch printing quality. It has two printing towers, so it can print two colors in just one paper pass—no extra steps needed. The plate mounting part comes with quick positioning and tensioning tools, making setup fast and simple. We added a semi-automatic ink roller cleaning system too; it cuts down cleaning time, speeds up ink color changeover process, lightens your workload, and gets more work done faster. It uses alcohol dampening technology to keep water supply steady, balancing ink and water perfectly while printing. There’s also an embedded automatic water volume tracking tool that adjusts water flow based on how fast the machine is running. The plate and blanket cylinders have bearer rings, so you get high-quality prints and smooth operation even when printing at high speeds.
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
