HOME > Products

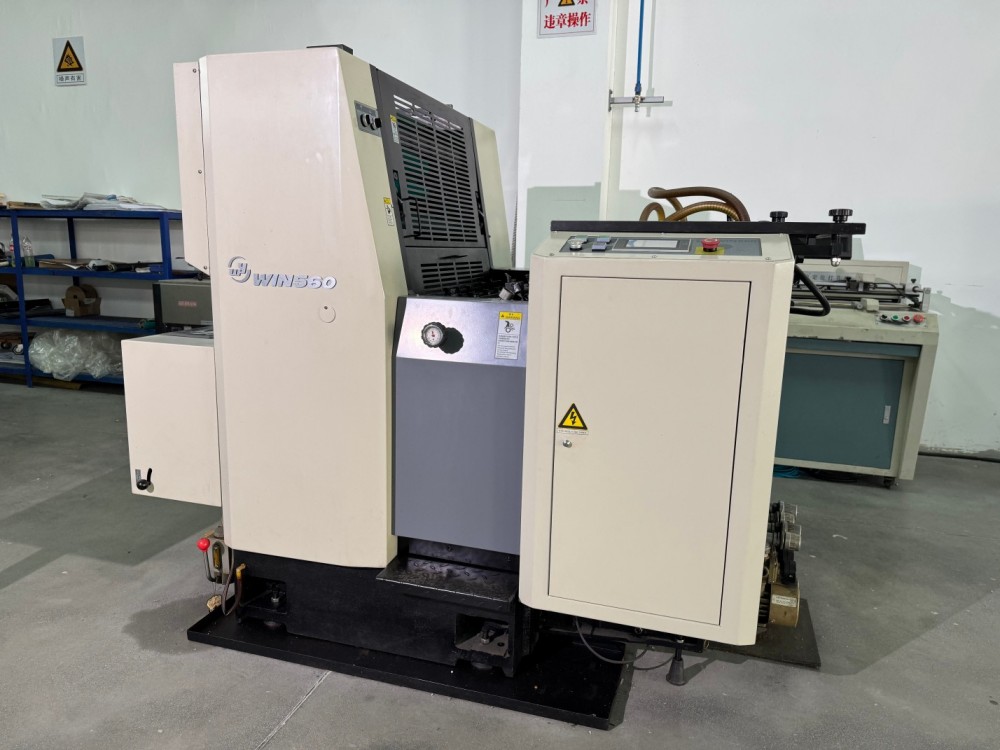

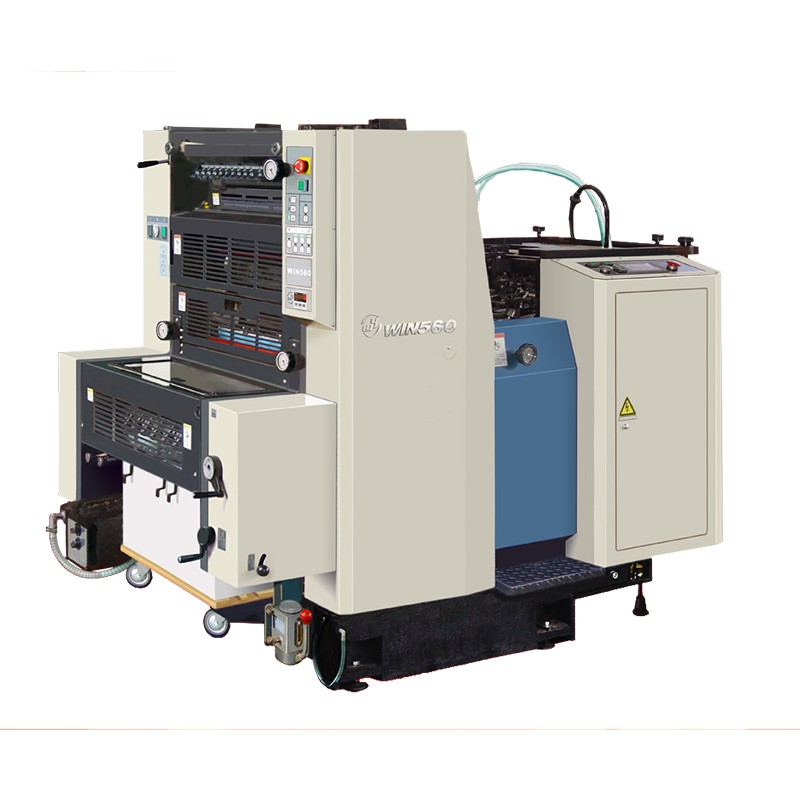

A2 High-Speed Single-Color Continuous Form Offset Printing Press
Weihai Printing Machinery Co., Ltd. designed and built the A2 High-Speed Single-Color Continuous Form Offset Printing Press. This high-speed single-color press works for A2 and larger sheets. It runs efficiently and prints with good quality. It is compatible with many printing substrates. It is ideal for mid-to-high end commercial and packaging jobs. Typical products are self-adhesive labels, business cards, brochures, book covers and color inserts.
Weihai Printing Machinery Co., Ltd. offers this A2 High-Speed Single-Color Continuous Form Offset Printing Press. It is built for heavy use and runs reliably. With swing-arm feeding, stable paper transport, and double-spring grippers, it fits well for all kinds of single-color printing. The easy-to-use touch screen makes operation and parameter setting very simple.
Technical Parameters
| Max.Sheet Size (mm) | 560x395 | Horizontal Paper Feeding | Swing-Arm;Rollers |
| Min.Sheet Size(mm) | 200x155 | Rollers Quantity |
Ink Rollers 17 Water Rollers 5 |
| Paper Thickness(mm) | 0.04-0.4 | Gripper(mm) | 9±1 |
| Max.Print Area(mm) | 545x370 | Registration | Side Pull Guide(Diagonal Adjustable) |
| Printing Speed(sheet/h) | 3000-11000 | Image Longitudinal Adjustment(mm) | ±20 |
| Print Size(mm) | 550×420 | Image Longitudinal Fine Adjustment(mm) | ±1 |
| Plate Thickness(mm) | 0.3 | Image Traversal Fine Adjustment(mm) | ±2.5 |
| Blanket Size(mm) | 568x472x1.9 | Lubrication System | Centralized |
| Cylinder Packing Size(mm) | 545x410x0.6 | Power Supply | Three-Phase 380V 50Hz |
| Feeder | Continuously Feeding | Power (kw) | 4 |
| Feeder Capacity(mm) | High 550 | Motor Power(kw) | Main Motor 3Air Pump Motor 0.75 |
| Stacker System | Chain Transmission | Machine Size(mm) | 1910×1220x1620 |
| Stacker Capacity(mm) | High 400 | Weight(kg) | 2300 |
Product Features
Our A2 High-Speed Single-Color Continuous Form Offset Printing Press is made just for uncoated paper—it works on thin, thick uncoated paper and cardstock, printing high-quality results every time; this A2 High-Speed Single-Color Continuous Form Offset Printing Press meets all your uncoated paper and continuous form printing needs, it’s easy to operate with a PLC control and touchscreen for quick parameter setting and real-time monitoring, has a strong cast iron structure for durability and stable high-speed running, chrome-plated cylinders that last long and cut maintenance costs, a semi-automatic ink roller cleaning system to save time and boost efficiency, high-precision parts for smooth, quiet operation, swing-arm feeding for stable paper transport at high speeds, safety devices to protect operators and the A2 High-Speed Single-Color Continuous Form Offset Printing Press, bearer rings for accurate printing, quick plate change to save time, double-spring grippers to prevent paper slipping, and pneumatic control for fast response and stable, easy-to-maintain operation. The A2 High-Speed Single-Color Continuous Form Offset Printing Press is designed for reliable, high-efficiency continuous form printing.
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
Hot Tags: A2 High-Speed Single-Color Continuous Form Offset Printing Press
