HOME > Products

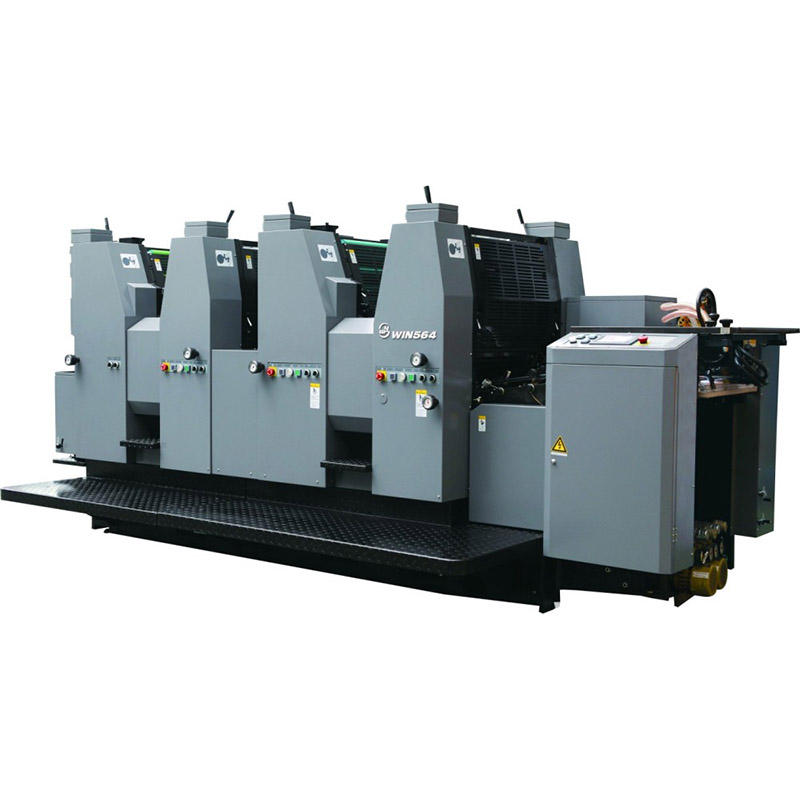

Four-Color Label Offset Printing Press
If you’re looking for a premium four-color cut-sheet offset press, check out the A2 Four-Color Label Offset Printing Press from Weihai Printing Machinery Co. Ltd. It handles A2 and larger sheet sizes easily, and it produces top-notch image prints with high efficiency. One of its best features is that it works with nearly all substrates. So whether you need self-adhesive labels, high-end business cards, brochures, book covers, or color inserts—all medium to high-end commercial and packaging products—it can get the job done.

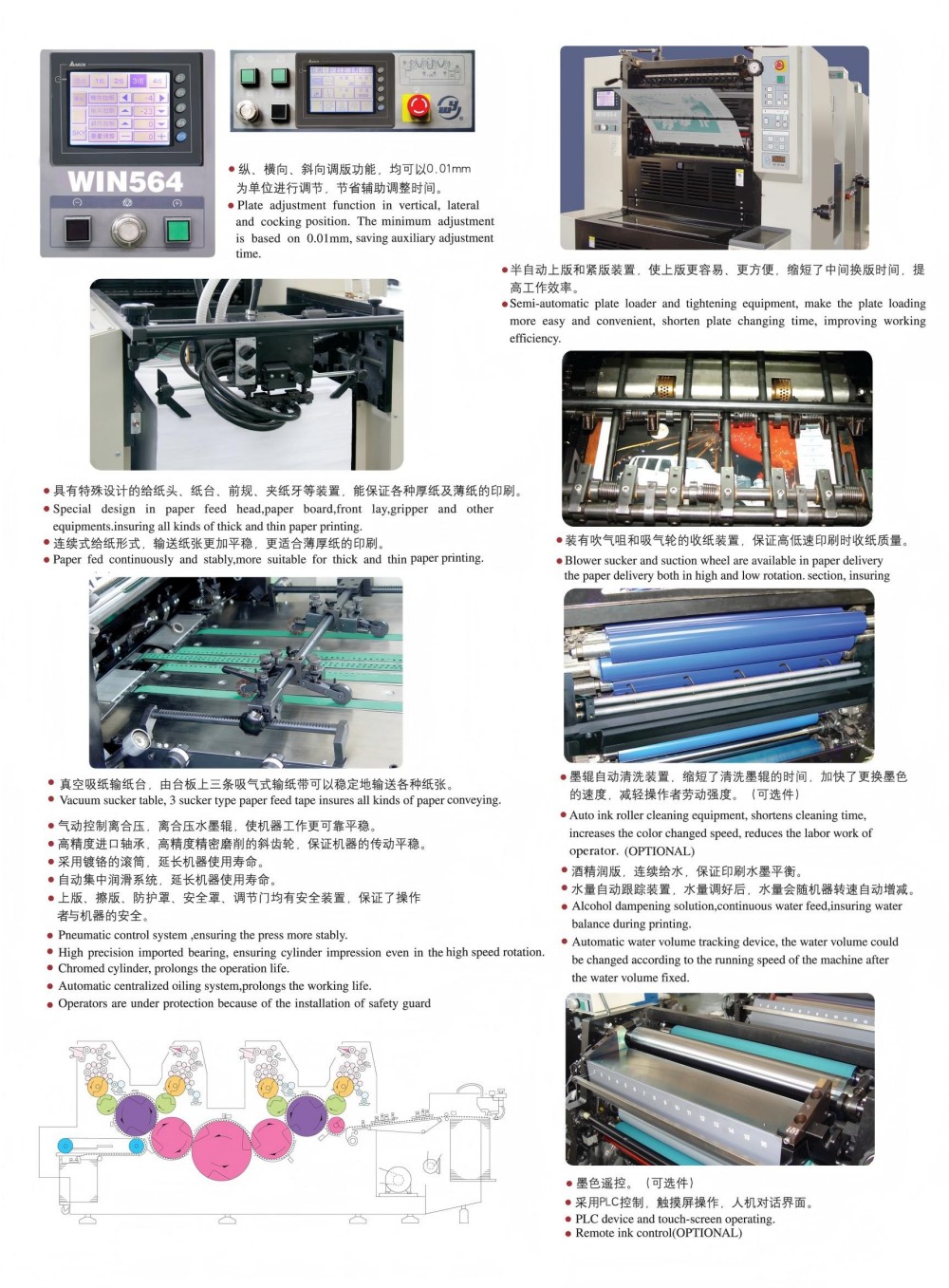

The A2 Four-Color Label Offset Printing Press is designed with high-performance modules, and they’re all top quality—high-precision rollers and gears, a strong paper feeding mechanism, a high-precision paper registration system, and a stable ink supply system. It’s tailored to meet the market’s requirements for cut-sheet color printing that’s high-quality, efficient, and affordable. You don’t have to stick to just one paper thickness, either—it works with thin paper (0.04mm) right up to thick cardboard (0.4mm). There’s also a touchscreen control with an intuitive programming interface, letting you adjust settings and printing parameters in a smart, straightforward way.
Technical Parameters
| Maximum Paper Size(mm) | 560x400 | Number of Rollers | 17 ink rollers,4 water rollers |
| Minimum Paper Size(mm) | 200x155 | Gripper Margin | 9±1 |
| Paper Thickness (mm) | 0.04-0.4 | Registration System | Side pull gauge(diagonallyadjustable) |
| Maximum Printing Area(mm) | 545x380 | Vertical Image Adjustment Range (mm) | ±20 |
| Printing Speed(s/h) | 3000-12000 | Fine Vertical Image Adjustment Range(mm) | ±1 |
| Plate Size(mm) | 550x430 | Fine Horizontal Image Adjustment Range (mm) | ±2 |
| Plate Thickness (mm) | 0.3 | Diagonal Image Adjustment Range (mm) | ±0.15(at maximum printing area) |
| Blanket Size(mm) | 568x450x1.9 | Lubrication System | Centralized lubrication system |
| Blanket Liner Size(mm) | 545x402x0.6 | Power Supply | Three-phase 380V 50Hz |
| Paper Feeding System | Continuous | Power(kw) | 13 |
| Paper Pile Capacity(mm) | 600mm high (170kg) | Motor Power(kw) | Main motor 11,air pump motor 0.75 |
| Paper Delivery System | Chain delivery | Machine Dimensions(mm) | 4200x2320x1710 |
| Delivery Pile Capacity(mm) | 430mm high(135kg) | Weight(kg) | 8300 |
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
Hot Tags: Four-Color Label Offset Printing Press Factory
