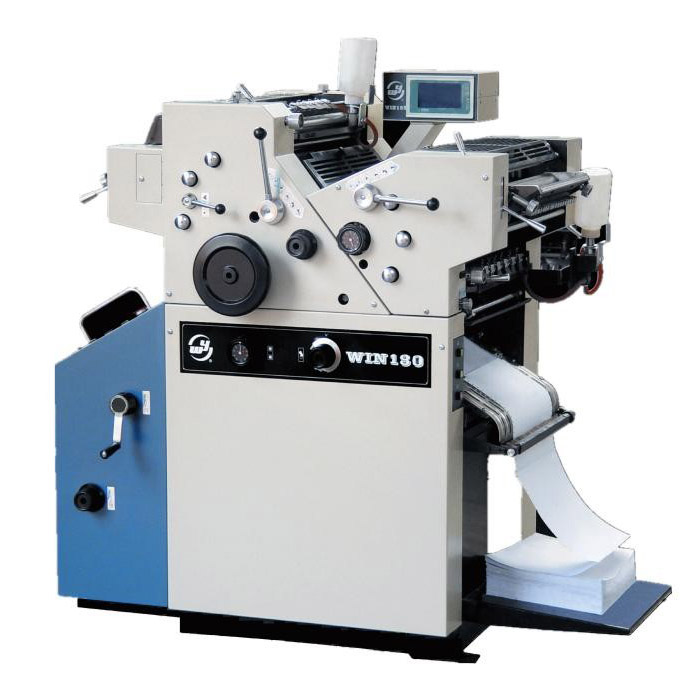

18-inch Continuous Commercial Forms Printing Press
Weihai Printing Machinery Co., Ltd. designs and builds this 18-inch Continuous Commercial Forms Printing Press. It works with continuous computer paper up to 18 inches wide. This press is mostly used to print multi-part forms. It works well for small orders and many different kinds of continuous forms. It can print two colors on forms from 4 inches × 7 inches to 18 inches × 14 inches. It also supports skip-printing for many kinds of forms.
This 18-inch Continuous Commercial Forms Printing Press is professional equipment for form printing. It makes multi-part forms, continuous forms and other related documents. Users say it runs efficiently and keeps costs low for large-scale production of standard two-color forms. It works great for small-batch and various computer forms. It supports two-color overprinting in the size range of 4 inches × 7 inches to 18 inches × 14 inches. The skip-print function helps it handle many different form types.
Technical Parameters
| Paper Width (inches) | 4”-18” | Skip Printing Range(sheets) | 0-999 |
| Paper Length (inches) | 7“-14”(以1/6"or 1/8"incrementaladjustment) | Dampening System | Water Sleeves |
| Paper Thickness(mm) | 0.06-0.2 | Rollers Per Unit | 10 Ink Roller4 Water Rollers |
| Max.Printing Area(W*L)(mm) | 460x355 | Image Longitudinal Adjustment(mm) | ±100 from both ends |
| Printing Speed(sheet/hour) | 3000-6000 | Image Longitudinal Fine Adjustment(mm) | ±1at the 2nd Unit |
| Plate Size(mm) | 464x478 | Image Transversal Fine Adjustment(mm) | ±1 at the 2nd Unit |
| Plate Thickness(mm) | 0.15 | Sheet Longitudinal Fine Adjustment(mm) | 0.05 Incremental |
| Plate Type | Plate Straight Edge Clamp | Sheet Traversal Fine Adjustment(mm) | ±2 |
| Blanket Size(mm) | 464×476x1.9 | Power Supply | 220V 50Hz |
| Cylinder Packing(mm) | 464x458x0.6 | Motor Consumption | Main Motor 750wPaper Driven Motor 400w |
| Feeder Capability(mm) | 300 | Dimension(LxWxH)(mm) | 1580x980x1400 |
| Paper Collection | Swing cage reversing distribution | Weight(kg) | 700 |
| Paper Collector Capacity(mm) | 340 |
|
|
Product Features
① Continuous paper feeding facilitates printing module adjustment.
② High-precision paper registration.
③ Two color printing on a single paper pass.
④ Computerized tabular forms printing.
⑤ Advanced digital servo motor drive.
⑥ Advanced touchscreen display system.
Customer Services
Production Tracking
We track the whole production process of all equipment in accordance with our in-house quality assurance procedures to ensure manufacturing quality and on-time delivery.
On-site Installation & Commissioning
Our professional engineers provide immediate on-site installation and commissioning upon equipment arrival to ensure it meets preset performance standards.
Spare Parts Inventory
We maintain a complete spare parts inventory to ensure timely supply, minimize machine downtime, and keep your production running smoothly.
Technical Support & Documentation
We offer detailed instruction manuals, parts catalogs, and professional technical support documents to answer any operational questions in a timely manner.
