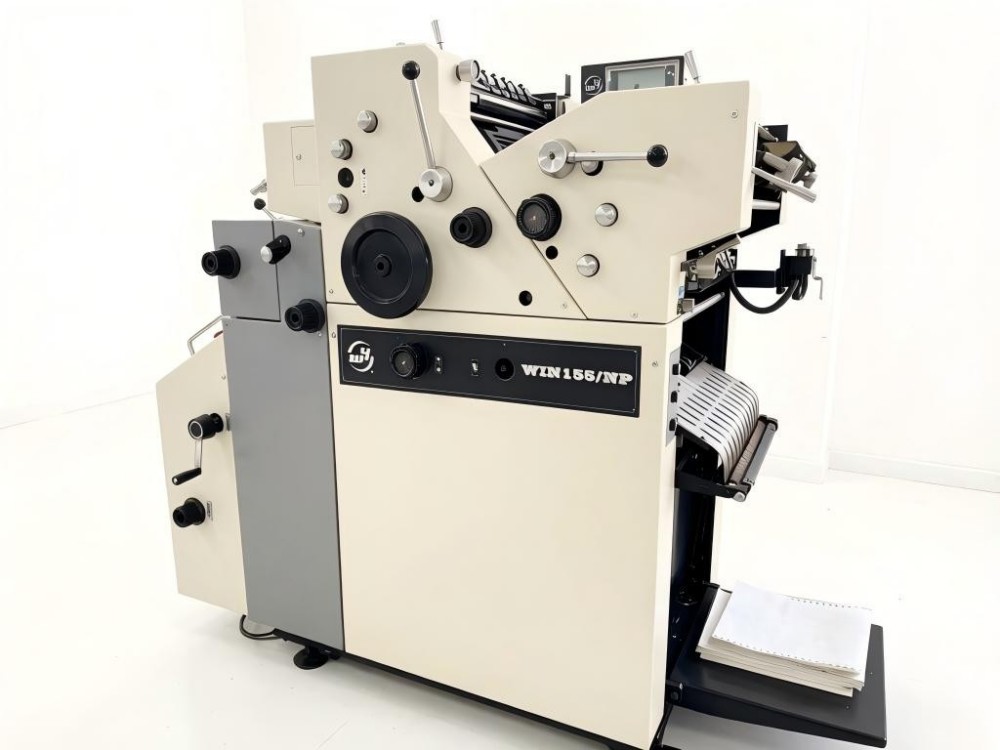

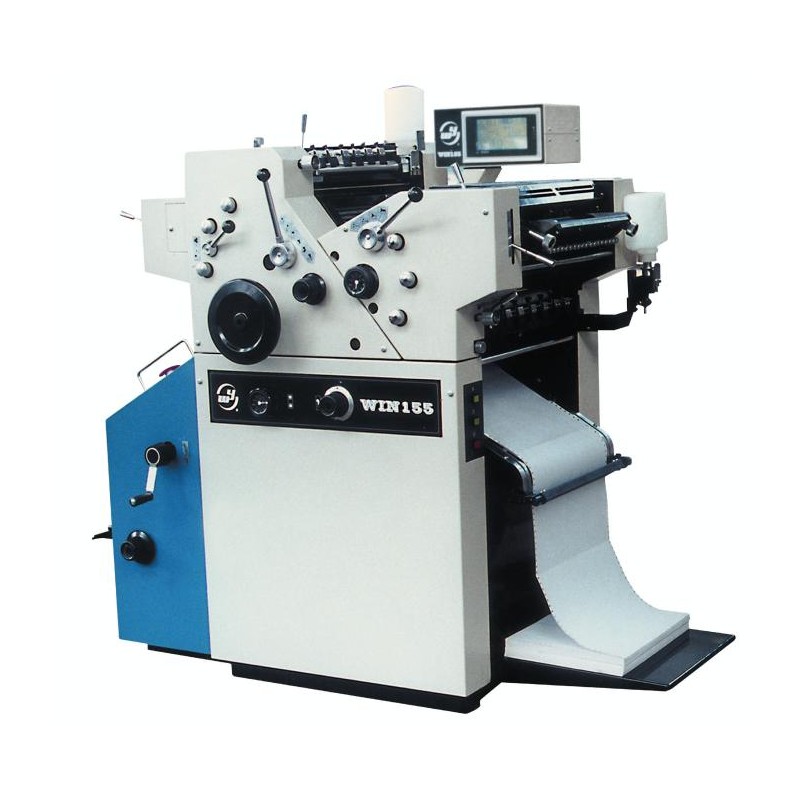

15.5-Inch Continuous Commercial Printing Press
Weihai Printing Machinery Co., Ltd. makes this 15.5-Inch Continuous Commercial Printing Press. It works with 15.5-inch continuous computer paper. You can use it to print multi-part forms, continuous forms and tickets. It also supports skip-printing. This machine works well for small orders and many different form types. It prints two colors on forms from 4×7 inches to 15.5×14 inches. It performs well on forms that need skip-print functions.
This 15.5-Inch Continuous Commercial Printing Press uses 15.5-inch roll paper. It mainly prints multi-part forms, continuous forms and invoices. It runs efficiently at a low cost. It is a good choice for large quantity production of standard two-color forms.
Technical Parameters
| Paper Width (inches) | 4”-15.5” | Skip Printing Range(sheets) | 0-999 |
| Paper Length (inches) | 7"-14”(1/6”or 1/8"incrementaladjustment) | Dampening System | Water Sleeves |
| Paper Thickness(mm) | 0.06-0.2 | Rollers Per Unit | 10 Ink Roller4 Water Rollers |
| Max.Printing Area(W*L)(mm) | 380x355 | Image Longitudinal Adjustment(mm) | ±100 from both ends |
| Printing Speed (sheets/hr) | 3000-6000 | Image Longitudinal Fine Adjustment(mm) | ±1 at the 2nd Unit |
| Plate Size(mm) | 384×478 | Image Transversal Fine Adjustment(mm) | ±1 at the 2nd Unit |
| Plate Thickness(mm) | 0.15 | Sheet Longitudinal Fine Adjustment(mm) | 0.05 Incremental |
| Plate Type | Plate Straight Edge Clamp | Sheet Traversal Fine Adjustment(mm) | ±2 |
| Blanket Size(mm) | 384x490x1.9 | Power Supply | 220V 50Hz |
| Cylinder Packing(mm) | 384×468x0.6 | Motor Consumption(w) | Main Motor 750Paper Driven Motor 400 |
| Feeder Capability(mm) | 300 | Dimension(LxWxH)(mm) | 1580x900x1400 |
| Paper Collection | Swing cage reversing distribution | Weight(kg) | 600 |
| Paper Collector Capacity(mm) | 340 |
|
|
Product Features
1)Print two colors in one single pass.
2)High accuracy with strong practical functions.
3)Print computerized forms and tables easily.
4)Driven by advanced digital servo motors.
5)Simple and clear touchscreen control system.
6)Stable and high-precision paper registration.
7)Smart working process ensures high quality and fast printing.

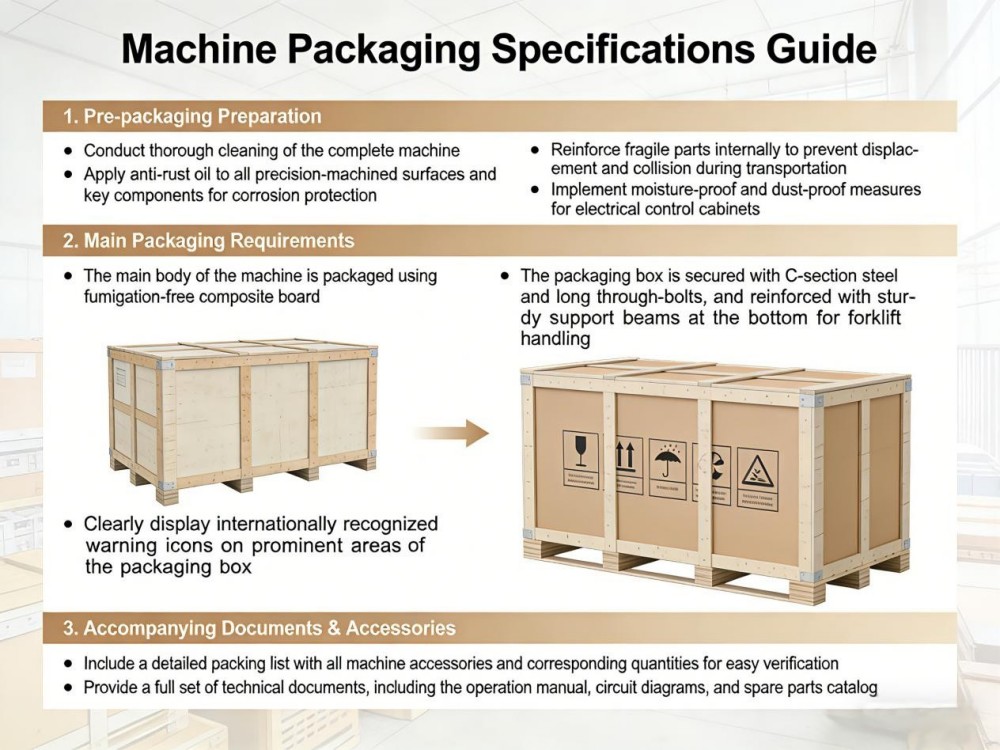

Machine Packaging Specifications Guide
Hot Tags: 15.5-Inch Continuous Commercial Printing Press
