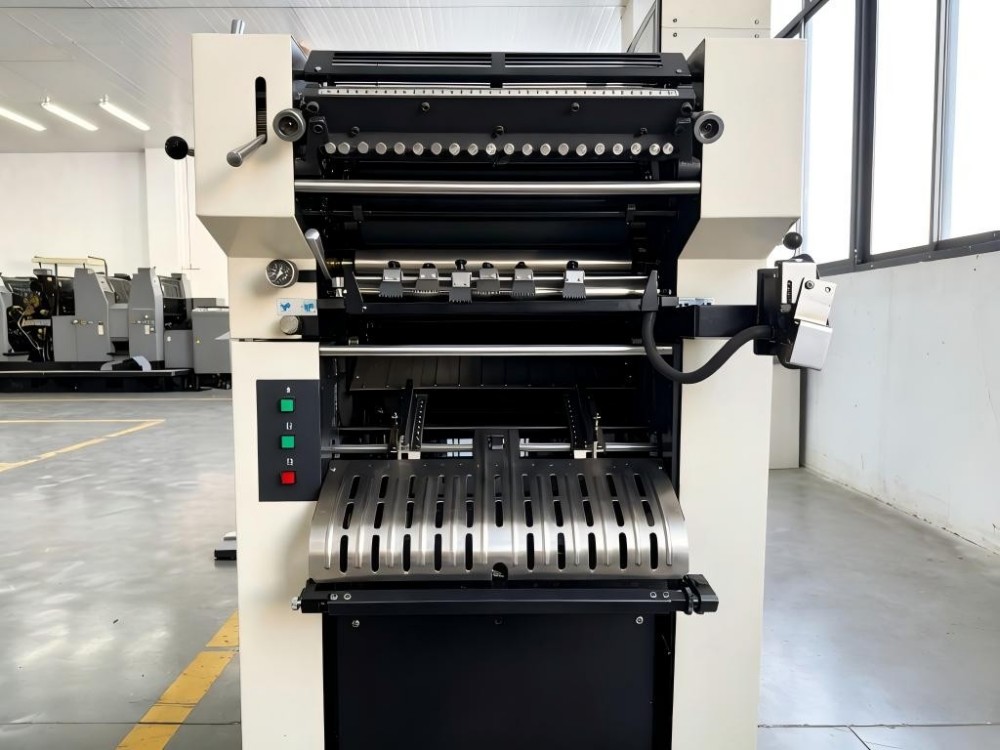

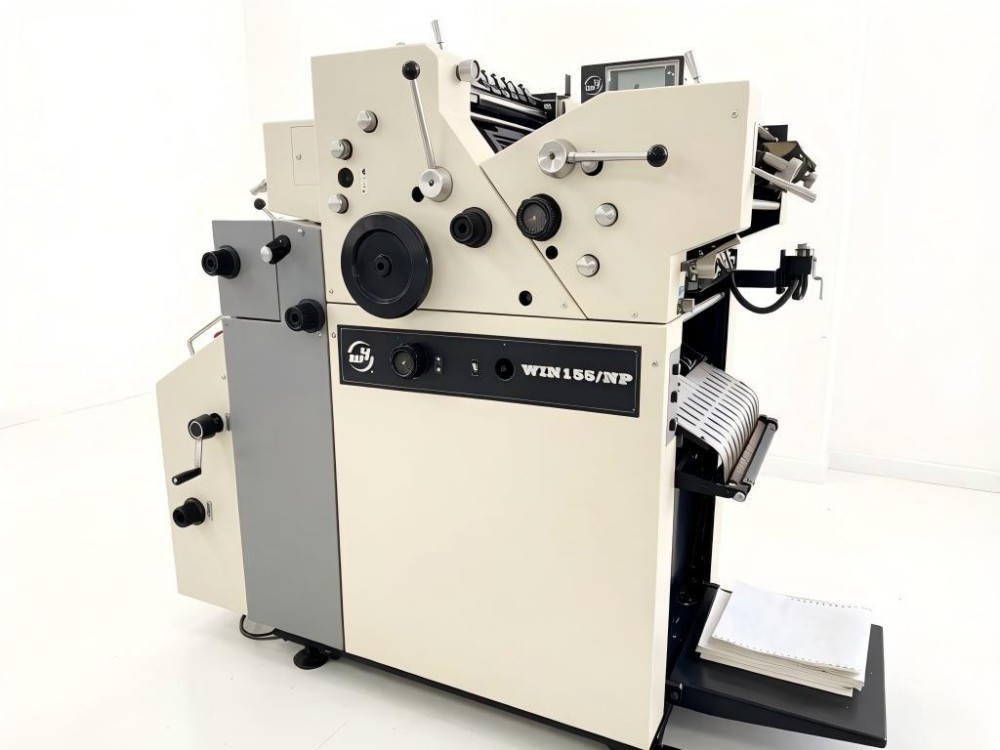

15.5-Inch Two-Color Continuous Form Printing Press
This 15.5-Inch Two-Color Continuous Form Printing Press for continuous feed computer paper, designed and manufactured by Weihai Printing Machinery Co., Ltd., is running on roll paper of 15.5 inches for printing multi-part forms, continuous forms and tickets with skip-printing capabilities. This 15.5-Inch Two-Color Continuous Form Printing Press is proven suitable to print continuously multi-variety forms of small quantities. It can perform two-color overprinting on tabular forms of different sizes ranging from 4 inches x 7 inches to 15.5 inches x 14 inches, notably overprint on multi-variety forms with skip-print capability.
The 15.5-Inch Two-Color Continuous Form Printing Press, running on roll paper of 15.5 inches, is mainly used to print multi-parts forms, continuous forms and invoices. It’s been proven very efficient and low-cost when it comes to produce forms in high-volume and in standardized two colors.
Product Features
1)Two-color printing in a single paper pass.
2)High precision machine and rich in functionality.
3)Computerized tabular forms printing.
4)Advanced digital servo motor drive.
5)Advanced touchscreen display system.
6)High-precision paper web registration.
7)Smart work flow to achieve high quality printing and high-speed operation.
Technical Parameters
| Paper Width (inches) | 4”-15.5” | Skip Printing Range(sheets) | 0-999 |
| Paper Length (inches) | 7"-14”(1/6”or 1/8"incrementaladjustment) | Dampening System | Water Sleeves |
| Paper Thickness(mm) | 0.06-0.2 | Rollers Per Unit | 10 Ink Roller4 Water Rollers |
| Max.Printing Area(W*L)(mm) | 380x355 | Image Longitudinal Adjustment(mm) | ±100 from both ends |
| Printing Speed (sheets/hr) | 3000-6000 | Image Longitudinal Fine Adjustment(mm) | ±1 at the 2nd Unit |
| Plate Size(mm) | 384×478 | Image Transversal Fine Adjustment(mm) | ±1 at the 2nd Unit |
| Plate Thickness(mm) | 0.15 | Sheet Longitudinal Fine Adjustment(mm) | 0.05 Incremental |
| Plate Type | Plate Straight Edge Clamp | Sheet Traversal Fine Adjustment(mm) | ±2 |
| Blanket Size(mm) | 384x490x1.9 | Power Supply | 220V 50Hz |
| Cylinder Packing(mm) | 384×468x0.6 | Motor Consumption(w) | Main Motor 750Paper Driven Motor 400 |
| Feeder Capability(mm) | 300 | Dimension(LxWxH)(mm) | 1580x900x1400 |
| Paper Collection | Swing cage reversing distribution | Weight(kg) | 600 |
| Paper Collector Capacity(mm) | 340 |
|
|
