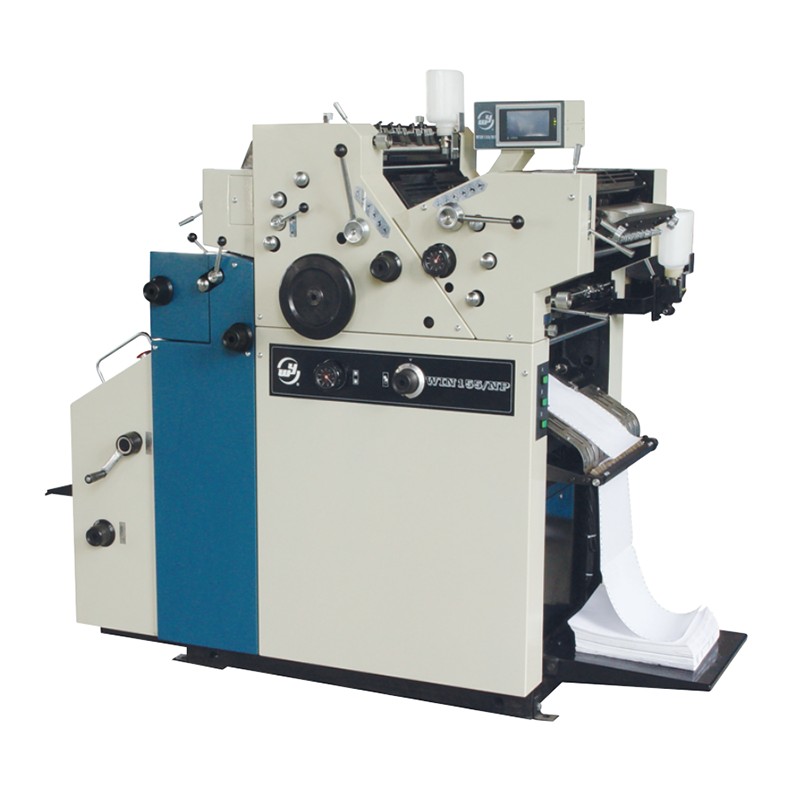

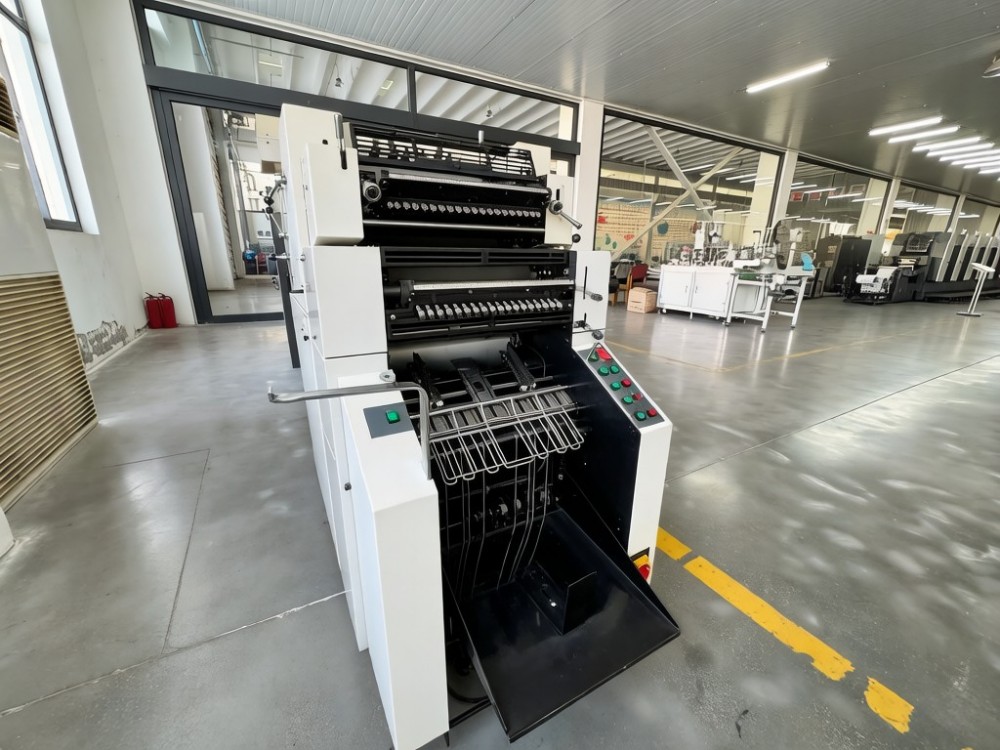

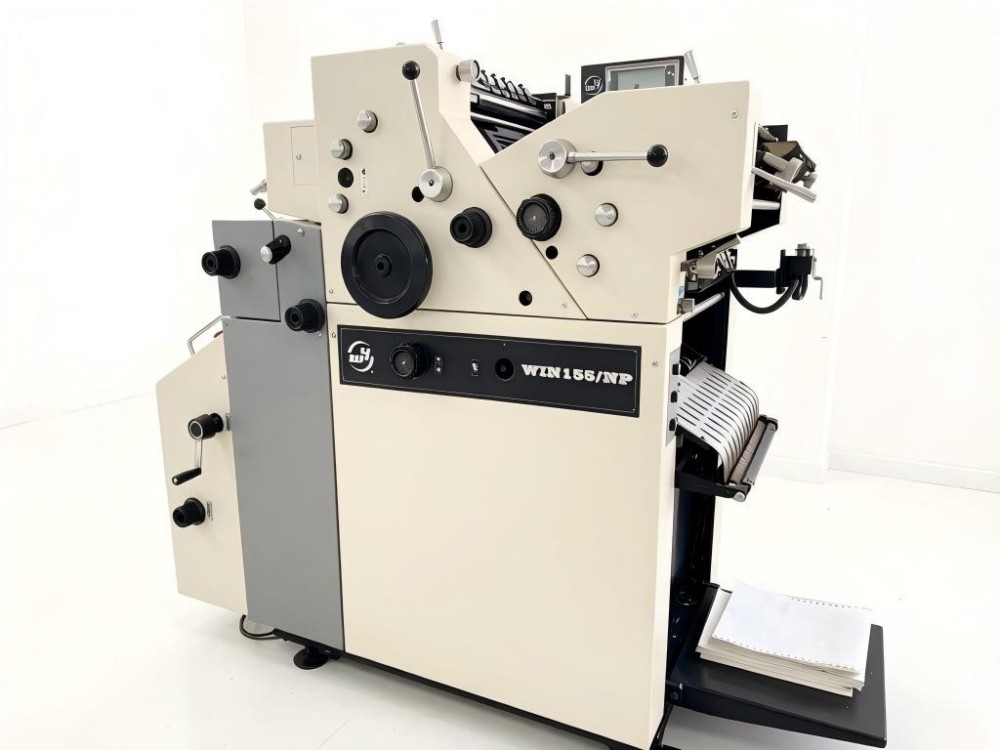

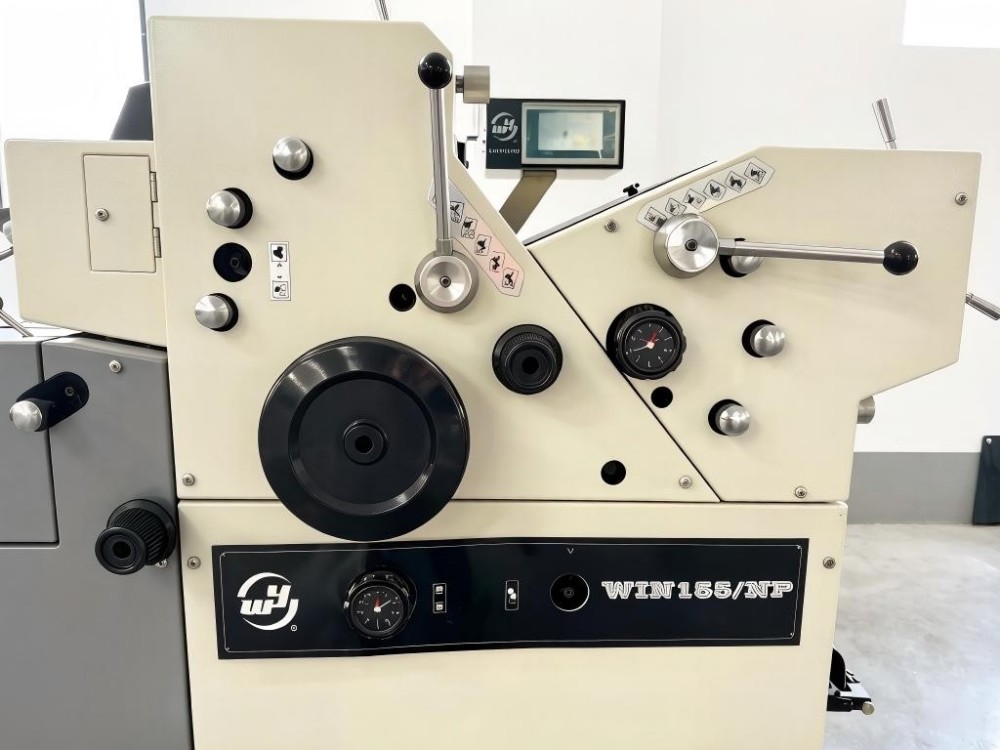

15.5-Inch Computerized Form Printing Press with Variable Skipping Function

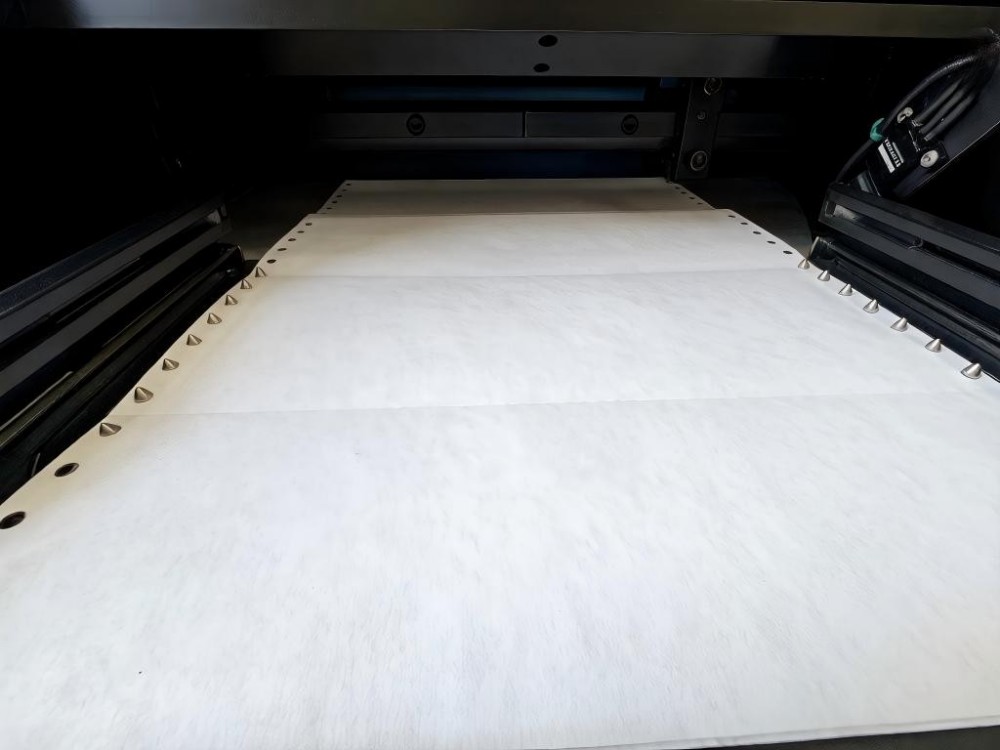

This 15.5-Inch Computerized Form Printing Press with Variable Skipping Function is built by Weihai Printing Machinery Co., Ltd. It runs on 15.5-inch roll paper. It is made for printing multi-part forms, continuous forms and tickets. Skip-printing is supported. Many users choose it for small-batch and various form printing.
It supports two-color overprinting on forms between 4×7 inches and 15.5×14 inches. It is especially good for forms with skip-print functions.
The 15.5-Inch Computerized Form Printing Press with Variable Skipping Function runs on 15.5-inch roll paper. It is widely used for printing multi-part forms, continuous forms and invoices. It helps users save cost while keeping high efficiency. It is ideal for mass production of standard two-color forms.
Technical Parameters
| Paper Width (inches) | 4”-15.5” | Skip Printing Range(sheets) | 0-999 |
| Paper Length (inches) | 7"-14”(1/6”or 1/8"incrementaladjustment) | Dampening System | Water Sleeves |

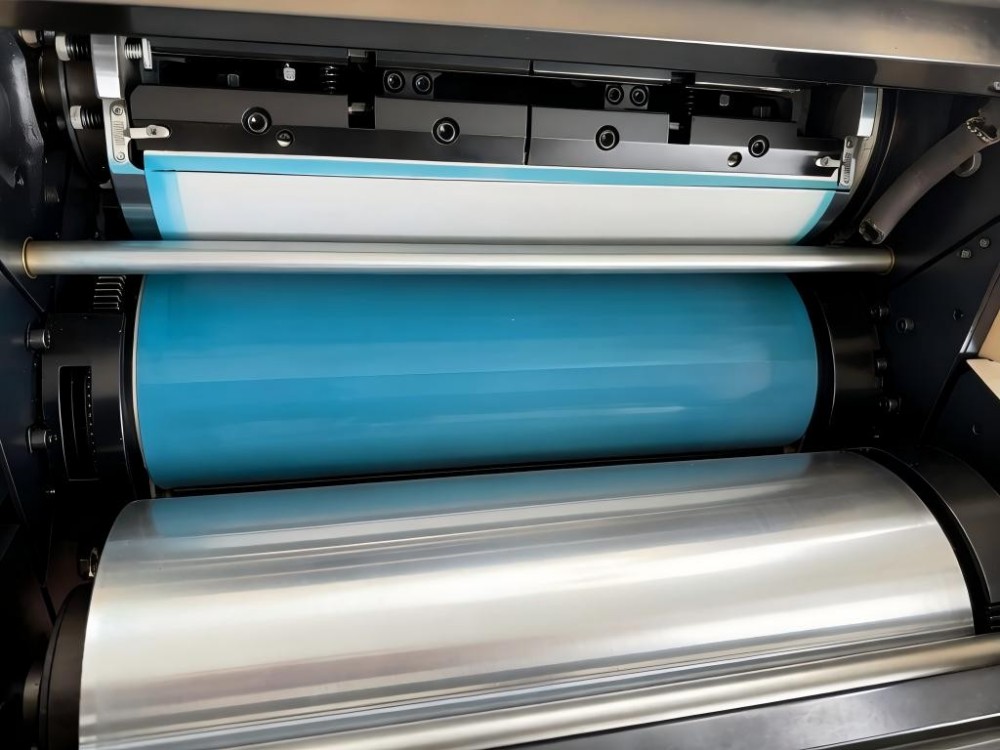

| Paper Thickness(mm) | 0.06-0.2 | Rollers Per Unit | 10 Ink Roller4 Water Rollers |
| Max.Printing Area(W*L)(mm) | 380x355 | Image Longitudinal Adjustment(mm) | ±100 from both ends |
| Printing Speed (sheets/hr) | 3000-6000 | Image Longitudinal Fine Adjustment(mm) | ±1 at the 2nd Unit |
| Plate Size(mm) | 384×478 | Image Transversal Fine Adjustment(mm) | ±1 at the 2nd Unit |
| Plate Thickness(mm) | 0.15 | Sheet Longitudinal Fine Adjustment(mm) | 0.05 Incremental |
| Plate Type | Plate Straight Edge Clamp | Sheet Traversal Fine Adjustment(mm) | ±2 |
| Blanket Size(mm) | 384x490x1.9 | Power Supply | 220V 50Hz |
| Cylinder Packing(mm) | 384×468x0.6 | Motor Consumption(w) | Main Motor 750Paper Driven Motor 400 |
| Feeder Capability(mm) | 300 | Dimension(LxWxH)(mm) | 1580x900x1400 |

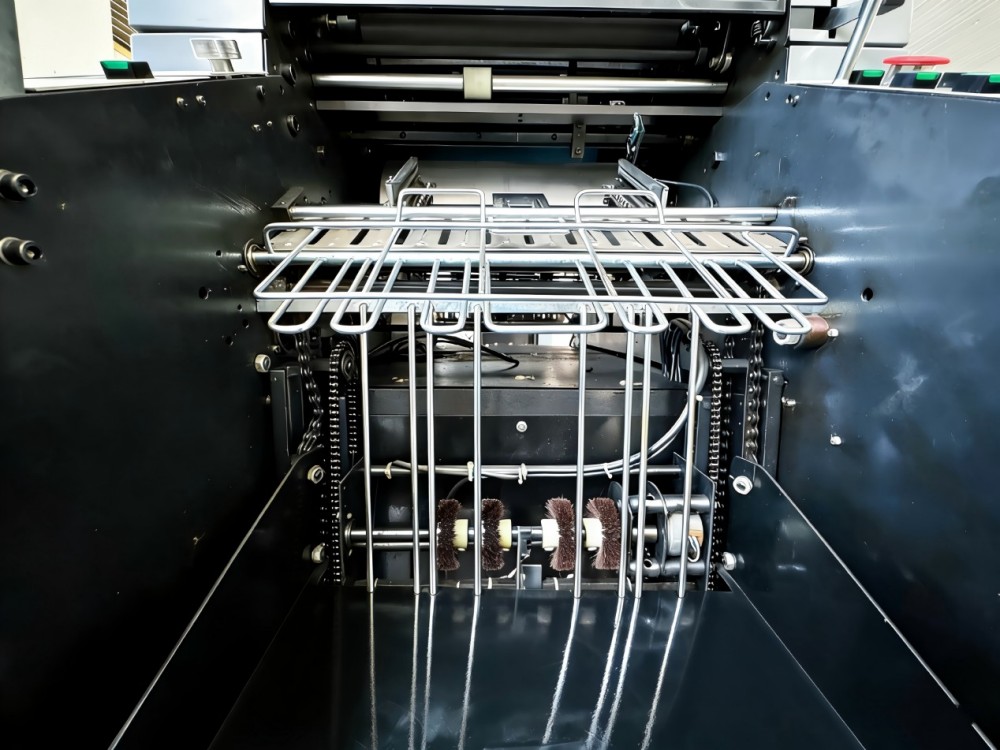

| Paper Collection | Swing cage reversing distribution | Weight(kg) | 600 |
| Paper Collector Capacity(mm) | 340 |
|
|
Product Features
1)Finish two-color printing in just one pass.
2)High precision and multiple practical functions.
3)Suitable for computerized form printing.
4)Equipped with advanced digital servo drive.
5)Easy operation with modern touch screen.
6)Reliable high-precision paper web control.
Optimized workflow for quality and speed
Customer Services
Production Tracking
We track the whole production process of all equipment in accordance with our in-house quality assurance procedures to ensure manufacturing quality and on-time delivery.
On-site Installation & Commissioning
Our professional engineers provide immediate on-site installation and commissioning upon equipment arrival to ensure it meets preset performance standards.
Spare Parts Inventory
We maintain a complete spare parts inventory to ensure timely supply, minimize machine downtime, and keep your production running smoothly.
Technical Support & Documentation
We offer detailed instruction manuals, parts catalogs, and professional technical support documents to answer any operational questions in a timely manner.
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
