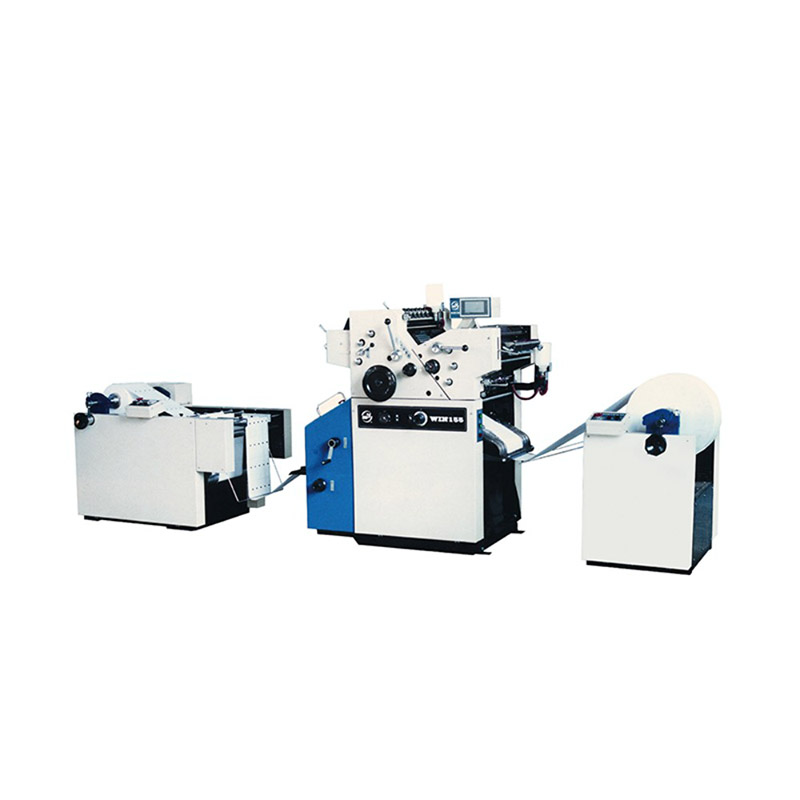

15.5-inch Two-Color Web-fed Computerized Form Printing Press
This 15.5-inch Two-Color Web-fed Computerized Form Printing Press, designed and manufactured by Weihai Printing Machinery Co., Ltd., is running on roll paper of 15.5 inches for printing multi-part forms, continuous forms, and tickets. It’s been proven that this 15.5-inch Two-Color Web-fed Computerized Form Printing Press is efficient and low-cost when it comes to produce forms in high-volume.
This 15.5-inch Two-Color Web-fed Computerized Form Printing Press, equipped with winding and unwinding mechanisms, is capable of printing various types of computer forms. It is suitable for printing small-batch and multi-variety computer forms, it features a skip-printing function, allowing it to overprint forms of multiple types， notably performing two-color overprinting on forms of different sizes ranging from 4 inches x 7 inches to 15.5 inches x 14 inches.
Product Features
1)Two-color printing in a single paper pass.
2)Computerized tabular form printing.
3)Roll paper feeding system facilitates printing adjustments.
4)Advanced digital servo motor drive.
5)Advanced touchscreen display system.
6)High-precision paper web registration.
Technical Parameters
| Max.Web Width (mm) | 381 | Dampening System | Water Sleeves |
| Paper Length(inches) | 7“-14”(Incremental by 1/6”or 1/8”) | Rollers Per Printing Unit | 10 Ink Rollers4 Water Rollers |
| Paper Thickness(mm) | 0.06-0.2 | Image Vertical Position Adjustment Range(mm) | ±100 At Two Ends |
| Max.Printing Area(W*L(mm) | 380x355 | Image Vertical Position Fine Adjustment Range(mm) | ±1at the 2nd printing unit |
| Printing Speed (sheets/hr) | 3000-6000 | Image Horizontal Position Fine Adjustment Range(mm) | ±1at the 2nd printing unit |
| Plate Size(mm) | 384x478 | Paper Position Longitudinal Fine adjustment(mm) | 0.05 incremental |
| Plate Thickness(mm) | 0.15 | Paper Position Transversal Fine adjustment(mm) | ±2 |
| Plate Type | Plate Straight Edge Clamp | Power Supply | 220V 50Hz |
| Blanket Size(mm) | 384x490x1.9 | Motor Power Consumption(w) | Main Motor 750Unwinder Motor 370Winder Motor 750 |
| Cylinder Packing(mm) | 384×468×0.6 | Dimensions(LxW×H)(mm) | Printing Unit 1580×900x1400Unwinder 680×880×820Winder 1130×930×820 |
| Max.Paper Roll Diameter(mm) | 600 | Weight(kg) | Around 1000 |
| Skip Printing Range (sheets) | 0-999 |
|
|
