HOME > Products

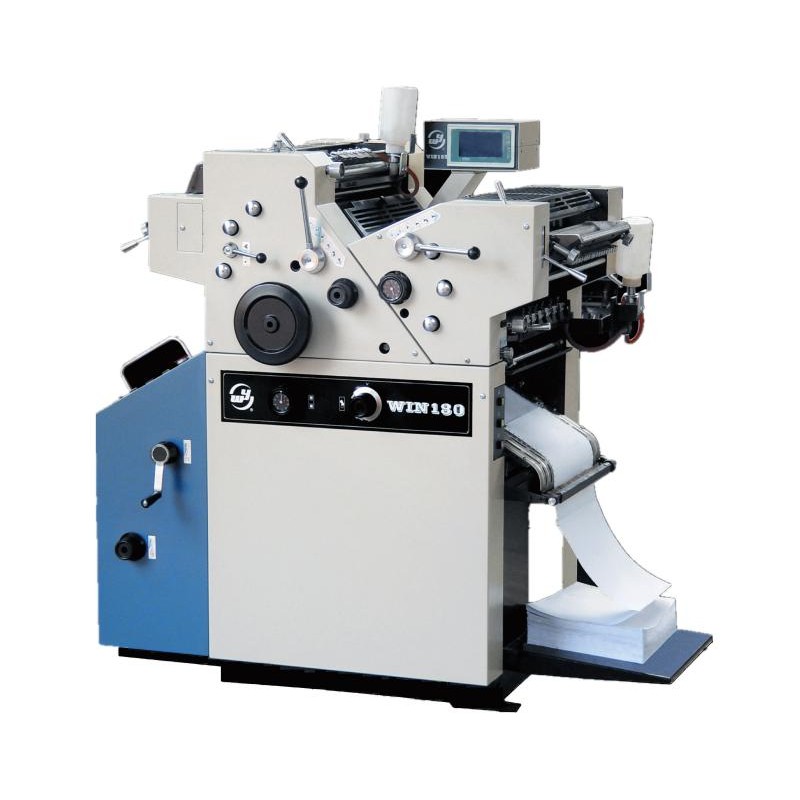

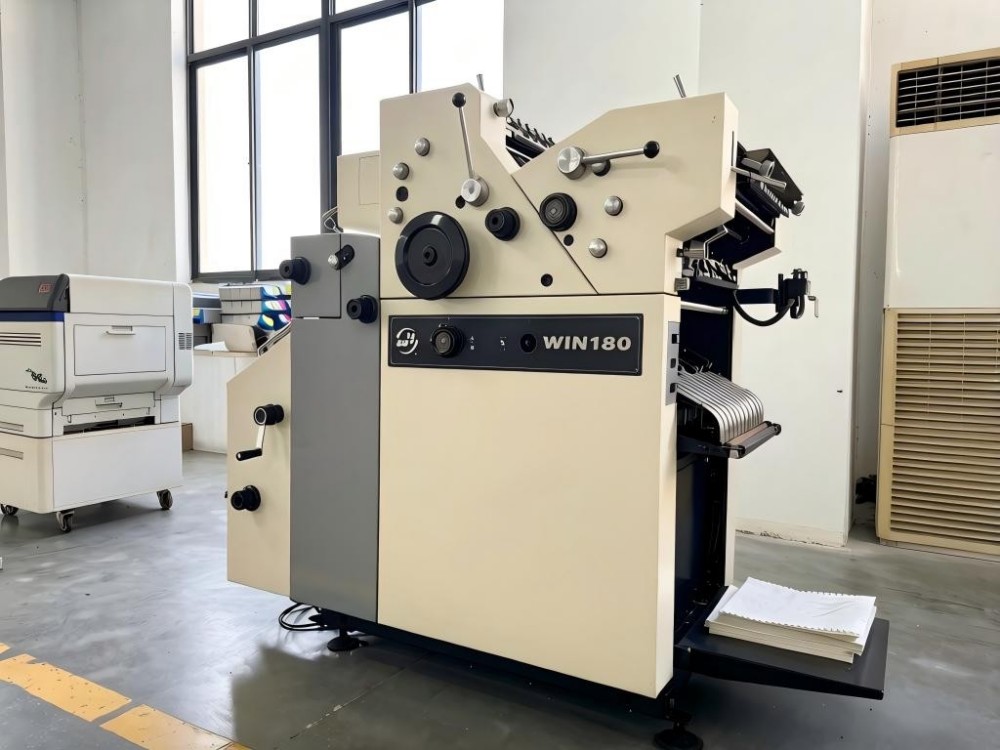

18-inch Computerized Form Printing Press with Variable Skipping Function
This 18-inch Computerized Form Printing Press with Variable Skipping Function is produced by Weihai Printing Machinery Co., Ltd. It uses continuous computer paper with a maximum width of 18 inches. It is widely used for printing multi-part forms. It performs well when printing small quantities and many different form types. It can complete two-color overprinting on forms sized from 4 inches × 7 inches to 18 inches × 14 inches. The skip-print function makes it suitable for various form jobs.
Made by Weihai Printing Machinery Co., Ltd., this 18-inch Computerized Form Printing Press with Variable Skipping Function focuses on printing multi-part forms and continuous forms. It offers high efficiency and low operating cost for mass production of two-color forms. It is suitable for continuous printing of small-batch and various computer forms. It supports two-color overprinting for sizes between 4 inches × 7 inches and 18 inches × 14 inches. With skip-printing, it can process a wide range of computer form products.
Technical Parameters
| Paper Width (inches) | 4”-18” | Skip Printing Range(sheets) | 0-999 |
| Paper Length (inches) | 7“-14”(以1/6"or 1/8"incrementaladjustment) | Dampening System | Water Sleeves |
| Paper Thickness(mm) | 0.06-0.2 | Rollers Per Unit | 10 Ink Roller4 Water Rollers |
| Max.Printing Area(W*L)(mm) | 460x355 | Image Longitudinal Adjustment(mm) | ±100 from both ends |
| Printing Speed(sheet/hour) | 3000-6000 | Image Longitudinal Fine Adjustment(mm) | ±1at the 2nd Unit |
| Plate Size(mm) | 464x478 | Image Transversal Fine Adjustment(mm) | ±1 at the 2nd Unit |
| Plate Thickness(mm) | 0.15 | Sheet Longitudinal Fine Adjustment(mm) | 0.05 Incremental |
| Plate Type | Plate Straight Edge Clamp | Sheet Traversal Fine Adjustment(mm) | ±2 |
| Blanket Size(mm) | 464×476x1.9 | Power Supply | 220V 50Hz |
| Cylinder Packing(mm) | 464x458x0.6 | Motor Consumption | Main Motor 750wPaper Driven Motor 400w |
| Feeder Capability(mm) | 300 | Dimension(LxWxH)(mm) | 1580x980x1400 |
| Paper Collection | Swing cage reversing distribution | Weight(kg) | 700 |
| Paper Collector Capacity(mm) | 340 |
|
|
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
Machine Packaging Specifications Guide
Hot Tags: 18-inch Computerized Form Printing Press with Variable Skipping Function
