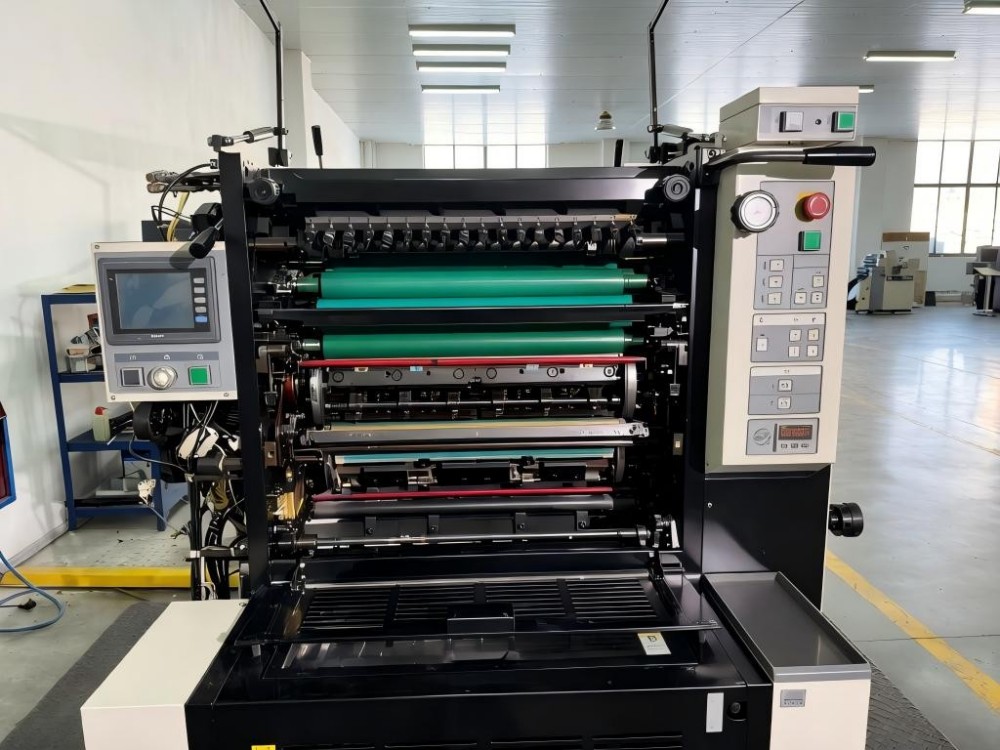

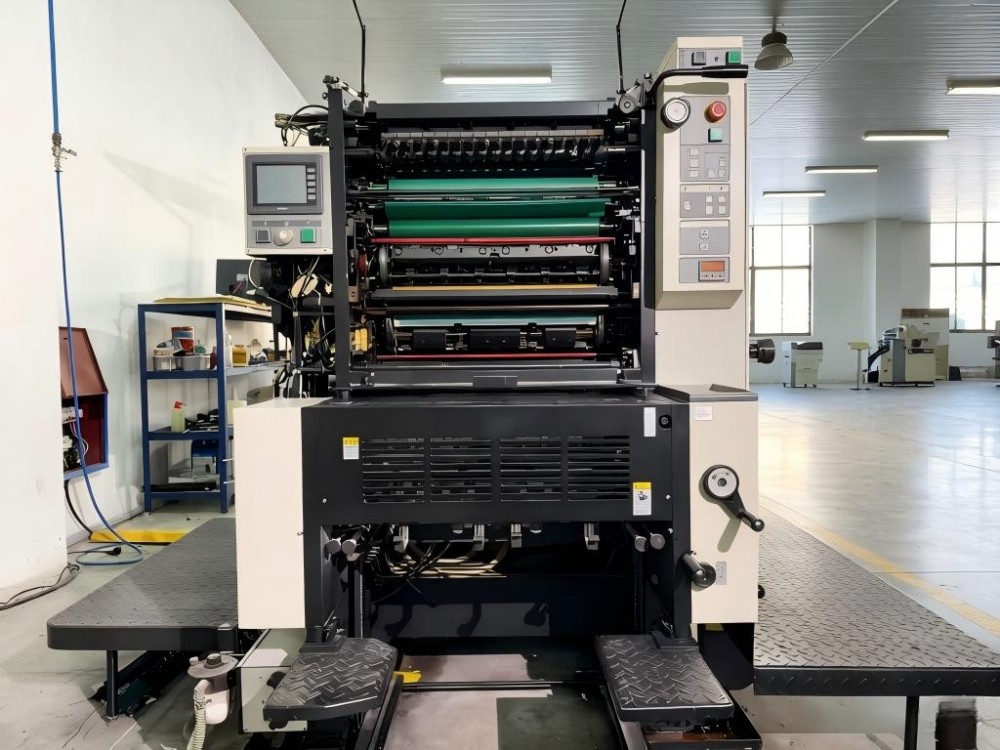

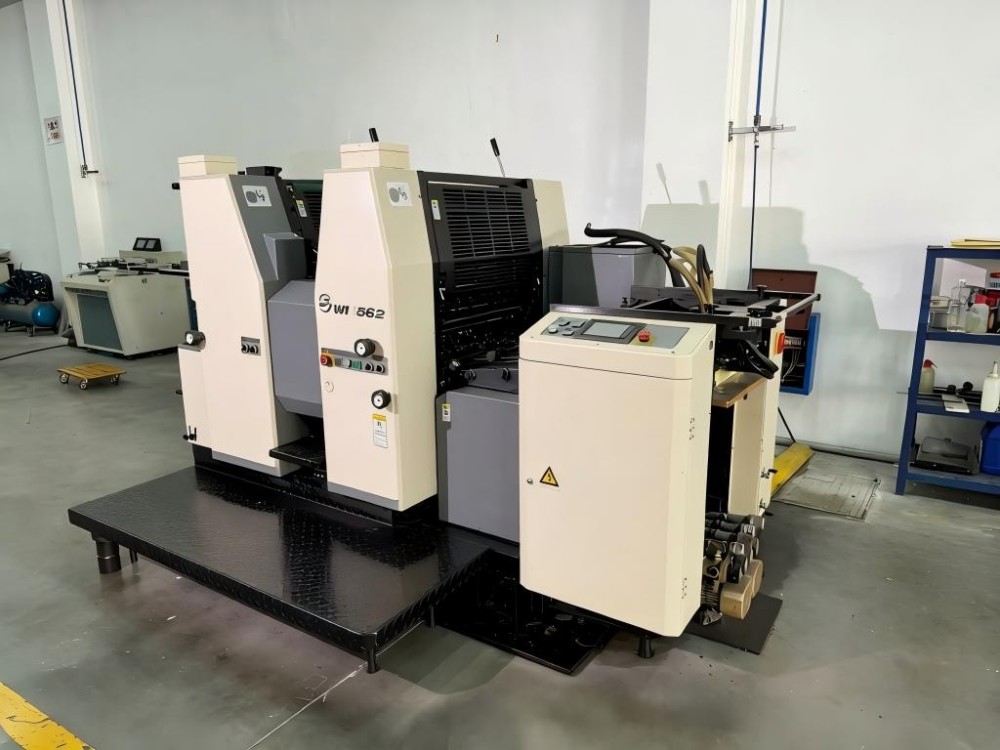

A2 Two-Color Commercial Printing Offset Printing Press

This A2 Two-Color Commercial Printing Offset Printing Press has a strong and sturdy body. It uses a swing-arm paper feeder together with continuous paper transport and double-spring gripper teeth. The press runs well at high speed and handles many different kinds of paper. It comes with a simple touch screen that lets users make easy adjustments to settings and printing parameters.

Technical Parameters

Product Features

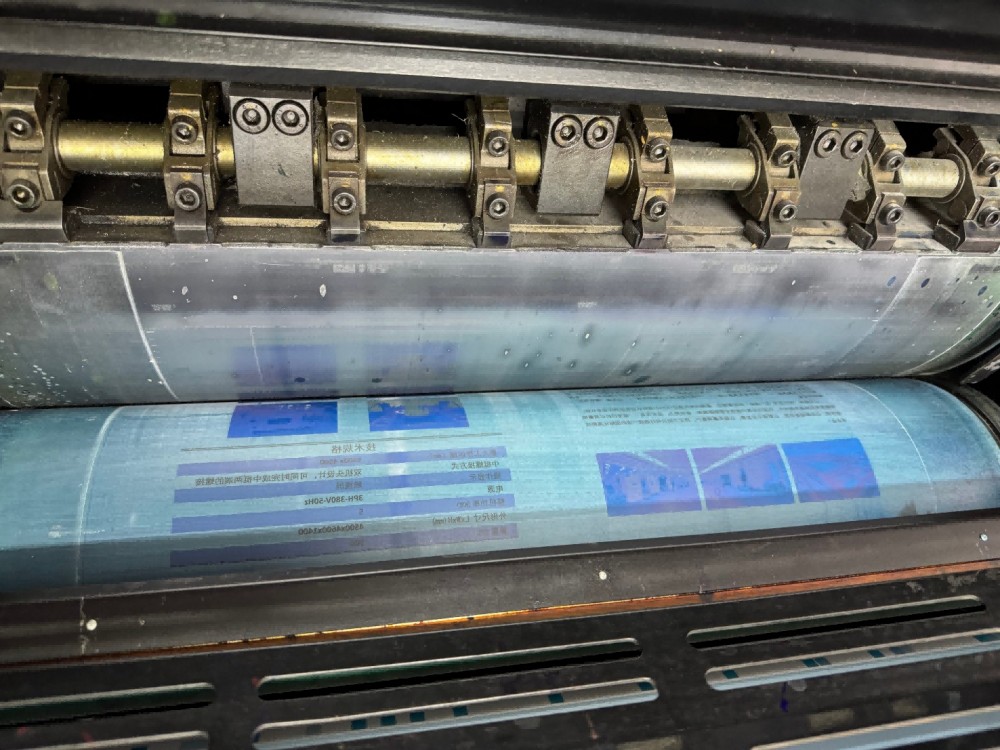

This A2 Two-Color Commercial Printing Offset Printing Press comes with a high-precision system. It uses high-precision bearings and precision-ground helical gears to deliver steady, smooth and quiet power transmission. The chromed printing cylinders add to its long-term durability. They offer strong wear resistance, help extend the machine’s service life and lower daily maintenance costs. Safety devices are built into key areas such as plate mounting, plate cleaning, protective covers, safety guards and door adjustment. These features protect both the operator and the machine during daily use.

Pneumatic control is used for the clutch and clutch pressure ink rollers. It responds quickly and makes the whole press run more reliably and steadily. The plate mounting mechanism has a quick positioning device and tensioning device. These parts cut down plate change-over time and make job switches more efficient. The A2 Two-Color Commercial Printing Offset Printing Press has a heavy-duty mechanical structure with a cast iron integral base, side plates and rollers. This strong structure provides high strength, rigidity, good wear resistance and shock absorption. It keeps the press stable and smooth at high speeds and maintains consistent printing pressure during operation.

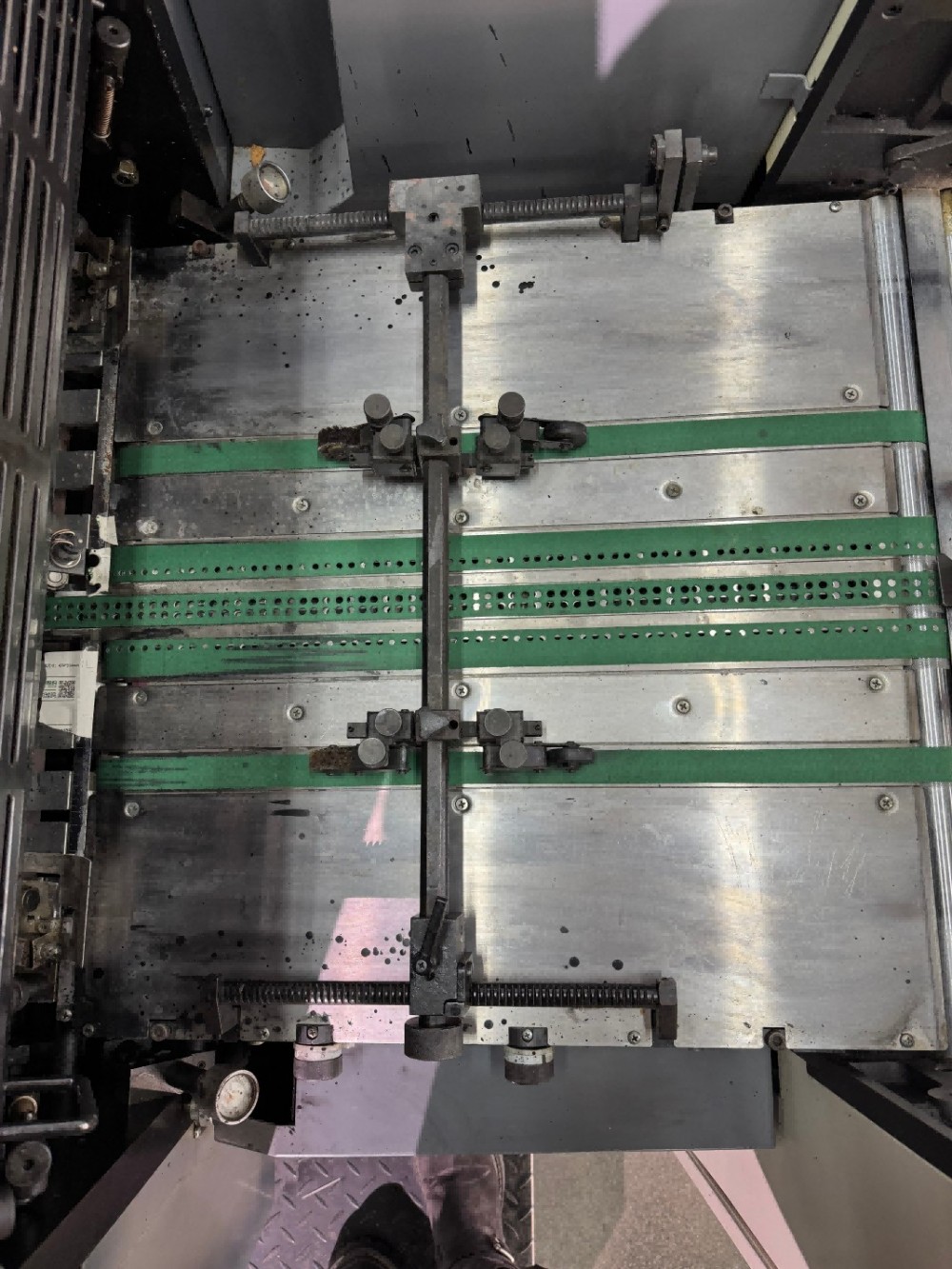

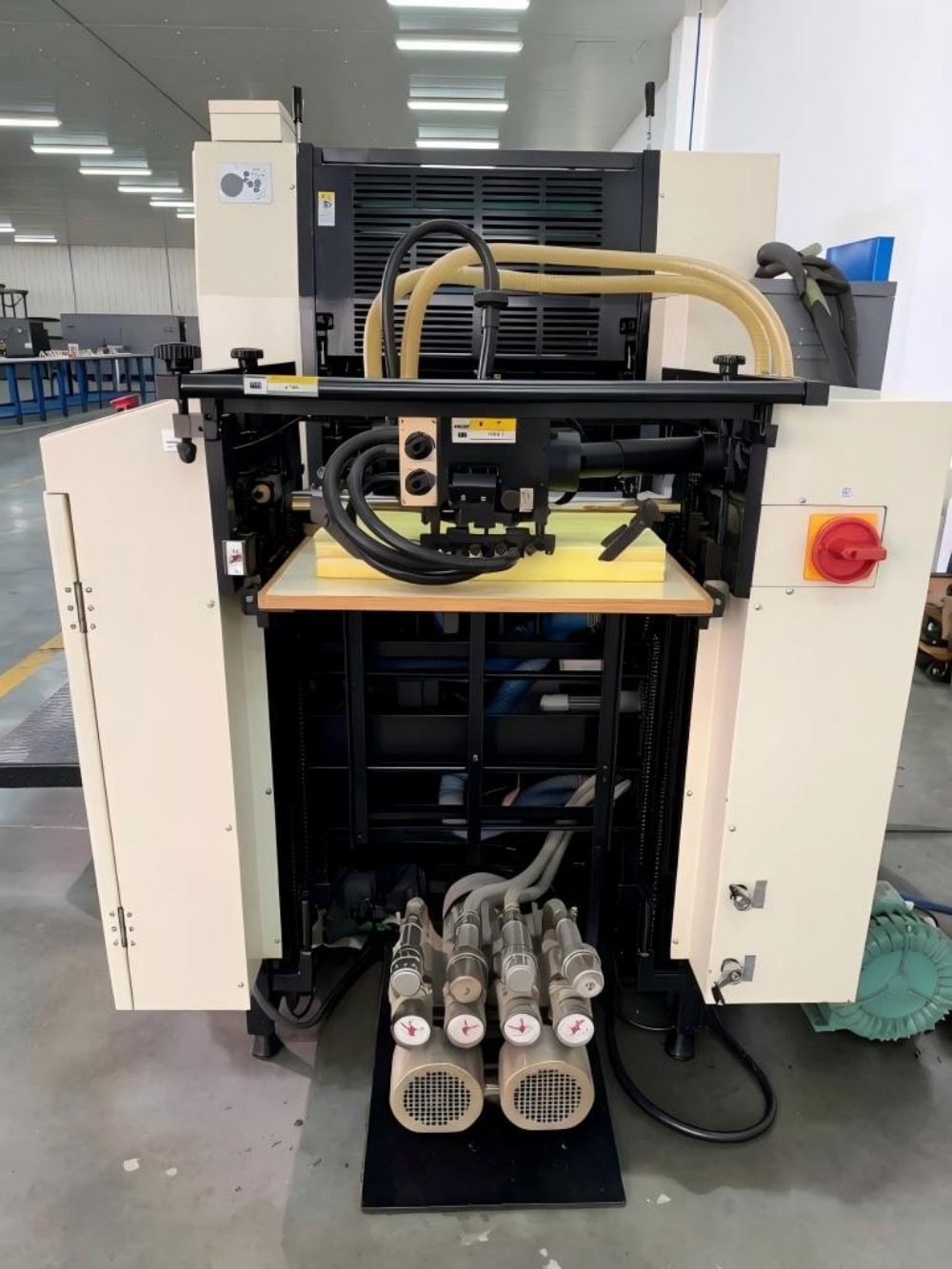

The two-color printing units let users print two colors in one single pass. Paper transport parts include a paper feeding head, vacuum suction table, front guide and paper grippers. They allow the A2 Two-Color Commercial Printing Offset Printing Press to work with many kinds of paper, from thin to thick stock. A continuous paper feeding system is mounted on the vacuum suction table with three rotating transport belts. This system reliably handles different paper types and thicknesses. The swing-arm paper feeding part keeps paper movement steady and smooth even when printing at high speed.

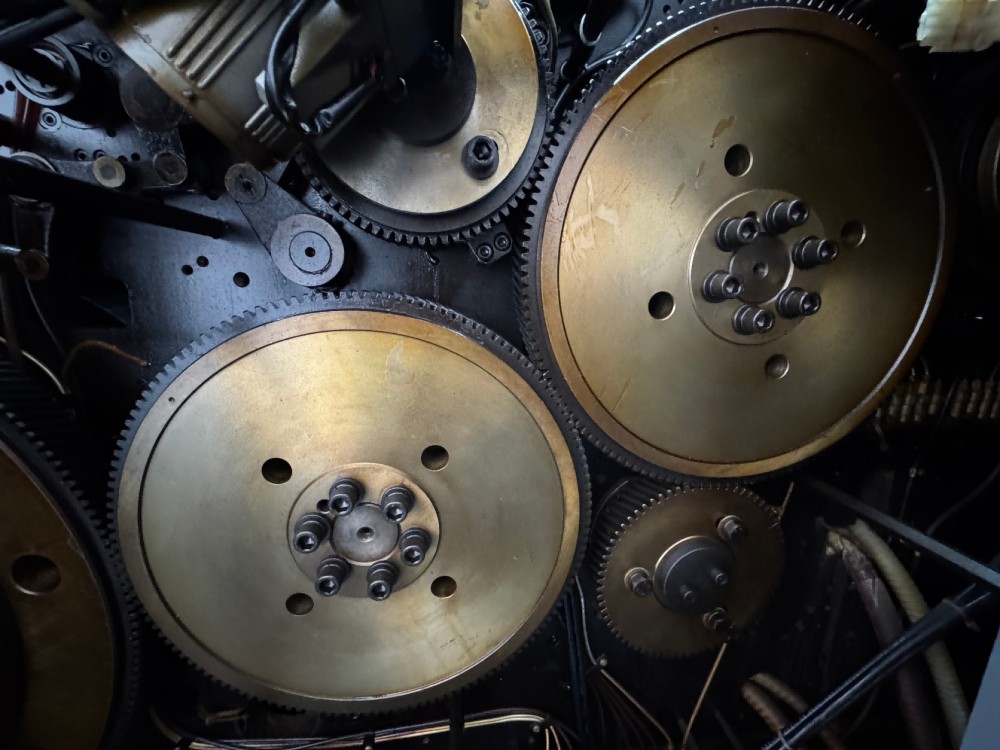

High-precision bearings and precision-ground helical gears form part of the core design. They further support quiet, stable and smooth power transmission. Double-spring grippers stop paper slippage at high speed and keep consistent grip during long runs. A semi-automatic ink roller cleaning system is easy to operate. It reduces cleaning time, speeds up color changes, lowers the operator’s workload and improves production efficiency.

This A2 Two-Color Commercial Printing Offset Printing Press uses alcohol dampening technology for stable and continuous water supply. It helps control the ink-water balance accurately during printing. An automatic water volume tracking device is built in. It adjusts water flow according to the machine’s running speed. The paper delivery module has air nozzles and suction wheels. This ensures clean, reliable paper delivery at both high and low printing speeds.
