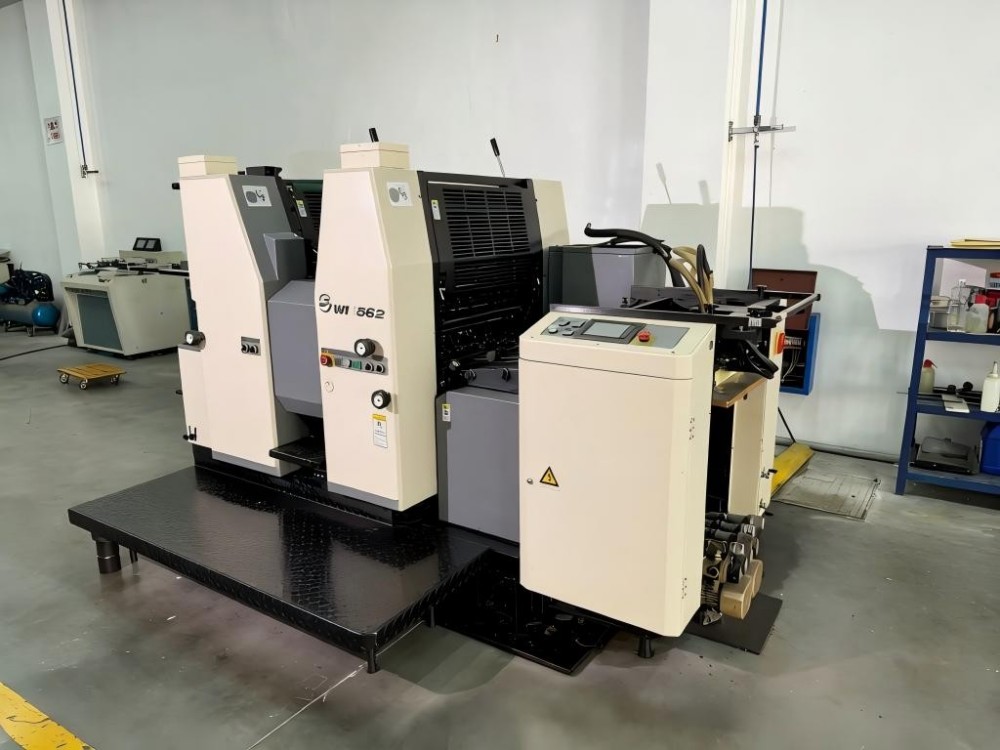

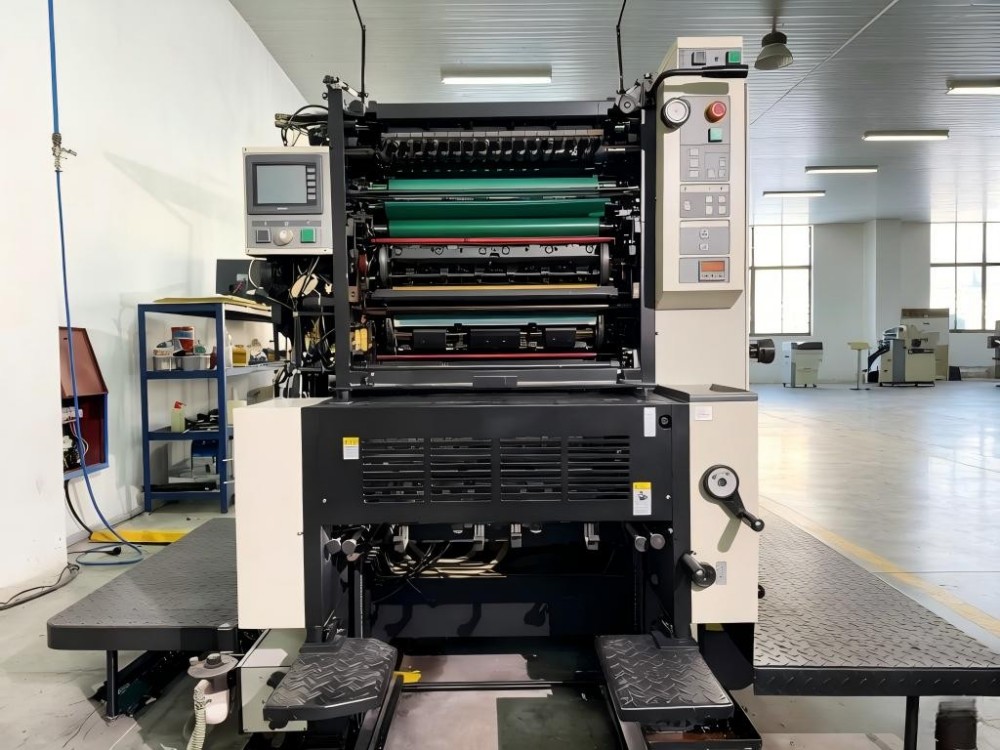

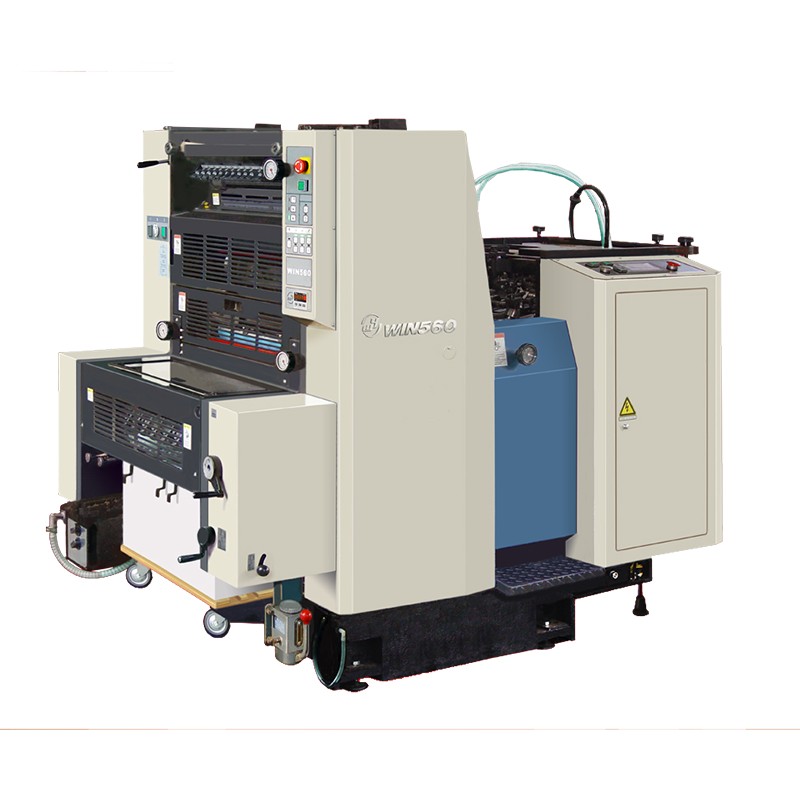

A2 Two-Color Label Printing Offset Printing Press
This A2 Two-Color Label Printing Offset Printing Press runs on sheet-fed paper. Designed and built by Weihai Printing Machinery Co., Ltd., it supports large-format paper from A2 size and up. It is widely used for high-quality label and color printing in small to medium production runs.

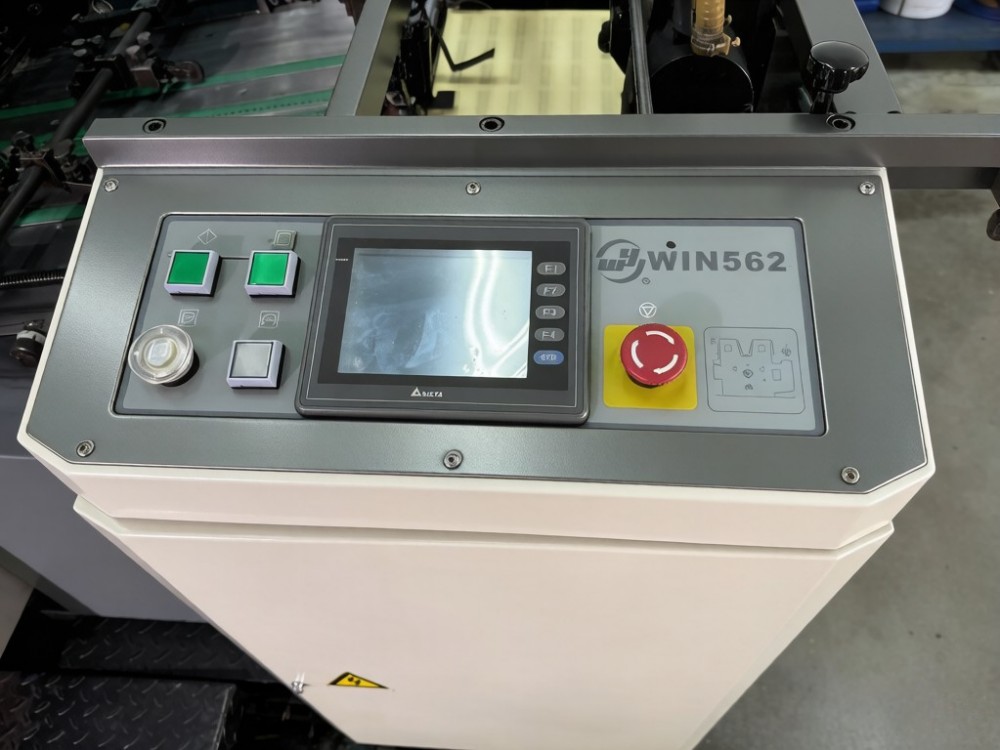

We designed this A2 Two-Color Label Printing Offset Printing Press to deliver stable performance. It has a solid frame. It uses swing-arm paper feeding. Its continuous paper transport runs reliably. Double-spring grippers hold paper firmly. It works with many paper types at high speed. The touchscreen programing interface keeps operation simple and clear.
Product Features

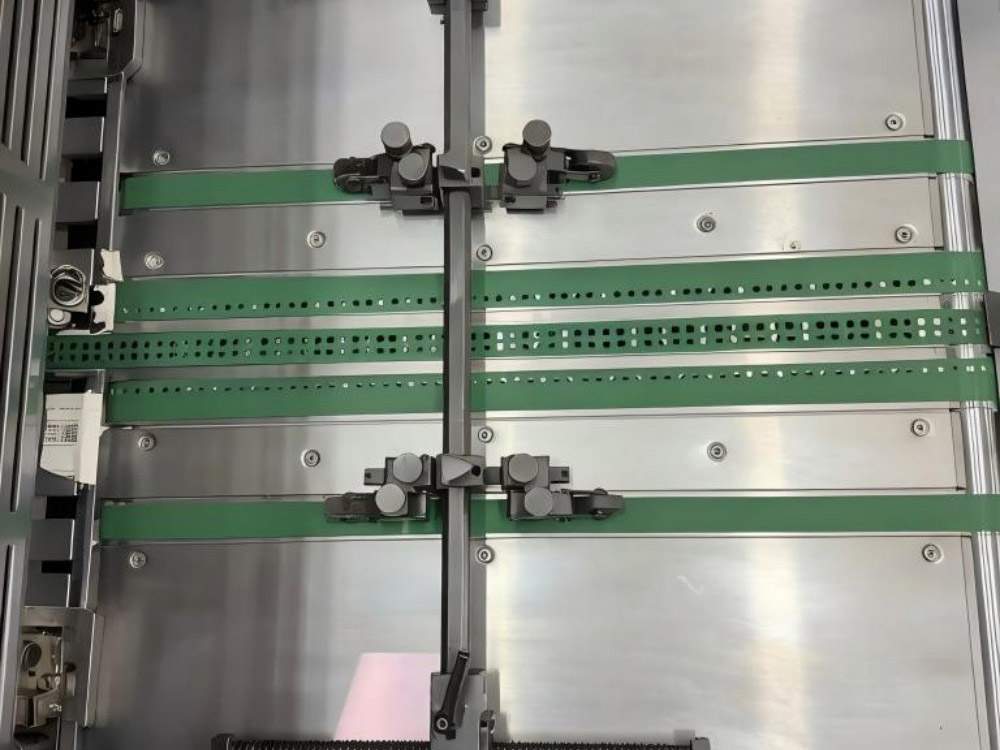

This is the A2 Two-Color Label Printing Offset Printing Press. It’s made for small to medium production runs. It’s all about efficiency and being easy to use. It can print two colors in one paper pass. That saves time and work. It has a quick positioning and tensioning device for plate mounting. This cuts down change-over time. There’s a semi-automatic ink roller cleaning system too, which speeds up color changes and lightens the operator’s workload. The press has a continuous paper feeding system. It’s paired with a vacuum suction table and three rotating transport belts. This setup handles different paper thicknesses well. Double-spring grippers stop paper from slipping. That’s key for high-speed printing. It has practical features, too. Things like alcohol dampening and automatic water volume adjustment. It also has quality paper delivery with air nozzles and suction wheels.
Technical Parameters
| Max.Sheet Size(mm) | 560x400 | Rollers Quantity |
Ink Rollers 17 Water Rollers 4 |
| Min.Sheet Size(mm) | 200x155 | Gripper(mm) | 9±1 |
| Paper Thickness (mm) | 0.04-0.4 | Registration | Side Pulling Lays(DiagonalAdjustable) |
| Max.Print Area(mm) | 545x380 | Image Longitudinal Adjustment(mm) | ±20 |
| Printing Speed(sheet/h) | 3000-12000 | Image Longitudinal Fine Adjustment(mm) | ±1 |
| Print Size(mm) | 550x430 | Image Traversal Fine Adjustment(mm) | ±2 |
| Plate Thickness(mm) | 0.3 | Image Diagonal Fine Adjustment(mm) | ±0.15(At Max Printing Area) |
| Blanket Size(mm) | 568x450x1.9 | Lubrication System | Centralized |
| Cylinder Packing Size(mm) | 545x402x0.6 | Power Supply | 380V 50Hz 3-Phase |
| Feeder | Continuously Feeding | Power(kw) | 7.5 |
| Feeder Capacity(mm) | High 600(Weight 170kg) | Motor Power(kw) | Main Motor 5.5Air Pump Motor 0.75 |
| Stacker | Chain Transmission | Machine Size(mm) | 2700x2320x1710 |
| Stacker Capacity(mm) | High 430(Weight 135kg) | Weight(kg) | 3600 |
Why Choose Us?
| Dimension | Reasons for Choosing Us | Competitor Gap |
| Quality Assurance | 60 + years manufacturing experience + ISO/CE certification + cast iron heavy-duty design, leading industry registration accuracy and stability | Most competitors lack long-term technical expertise;lightweight designs are prone to vibration,leading to inconsistent registration accuracy |
| EfficiencyImprovement | High-speed printing + quick job changeover + automatic plate loading/registration,overall productivity increased by 30%+ | Slow job changeover,high manual intervention, low efficiency in long runs,high cost in short runs |
| Cost Optimization | Consumable savings +low failure rate +easy maintenance,annual comprehensive costs reduced by 20%-40% | High consumable and maintenance costs,frequent downtime affecting delivery |
| FlexibleAdaptation | Quick conversion between single and double color +compatibility with multiple plate types + overseas customization,suitable for diverse orders | Poor adaptability,additional investment required to switch business types |
| Service &Reputation | Full lifecycle service +export certification + international reputation,after-sales response within 24-48 hours | Weak service network,missing or delayed overseas after-sales support |
