A2 Two-Color Quick Plate Change Printing Offset Printing Press
  • A2 Two-Color Quick Plate Change Printing Offset Printing PressA2 Two-Color Quick Plate Change Printing Offset Printing Press

A2 Two-Color Quick Plate Change Printing Offset Printing Press

Weihai Printing Machinery Co., Ltd. makes this A2 Two-Color Quick Plate Change Printing Offset Printing Press. It uses cut sheets for printing. The press handles paper sizes as big as A2 and bigger. Many people use it for quality prints in small or medium quantities.

This A2 Two-Color Quick Plate Change Printing Offset Printing Press supports A2 plus size paper. It is a two-color commercial offset model. It has a heavy-duty structure. It uses a swing-arm feeding design. Double-spring grippers help paper move smoothly. It prints fast on different paper thicknesses. A smart touchscreen is included. Operators can control the machine with ease.

Technical Parameters

Max.Sheet Size(mm) 560x400 Rollers Quantity Ink Rollers 17
Water Rollers 4
Min.Sheet Size(mm) 200x155 Gripper(mm) 9±1
Paper Thickness (mm) 0.04-0.4 Registration Side Pulling Lays(DiagonalAdjustable)
Max.Print Area(mm) 545x380 Image Longitudinal Adjustment(mm) ±20
Printing Speed(sheet/h) 3000-12000 Image Longitudinal Fine Adjustment(mm) ±1
Print Size(mm) 550x430 Image Traversal Fine Adjustment(mm) ±2
Plate Thickness(mm) 0.3 Image Diagonal Fine Adjustment(mm) ±0.15(At Max Printing Area)
Blanket Size(mm) 568x450x1.9 Lubrication System Centralized
Cylinder Packing Size(mm) 545x402x0.6 Power Supply 380V 50Hz 3-Phase
Feeder Continuously Feeding Power(kw) 7.5
Feeder Capacity(mm) High 600(Weight 170kg) Motor Power(kw) Main Motor 5.5Air Pump Motor 0.75
Stacker Chain Transmission Machine Size(mm) 2700x2320x1710
Stacker Capacity(mm) High 430(Weight 135kg) Weight(kg) 3600

Product Features

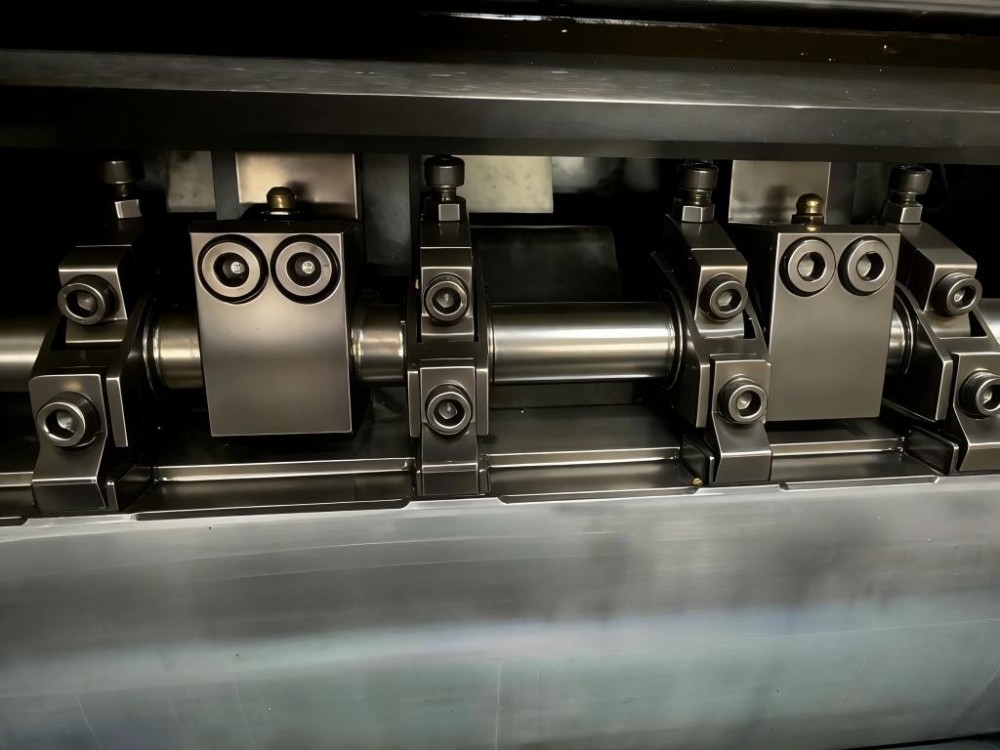

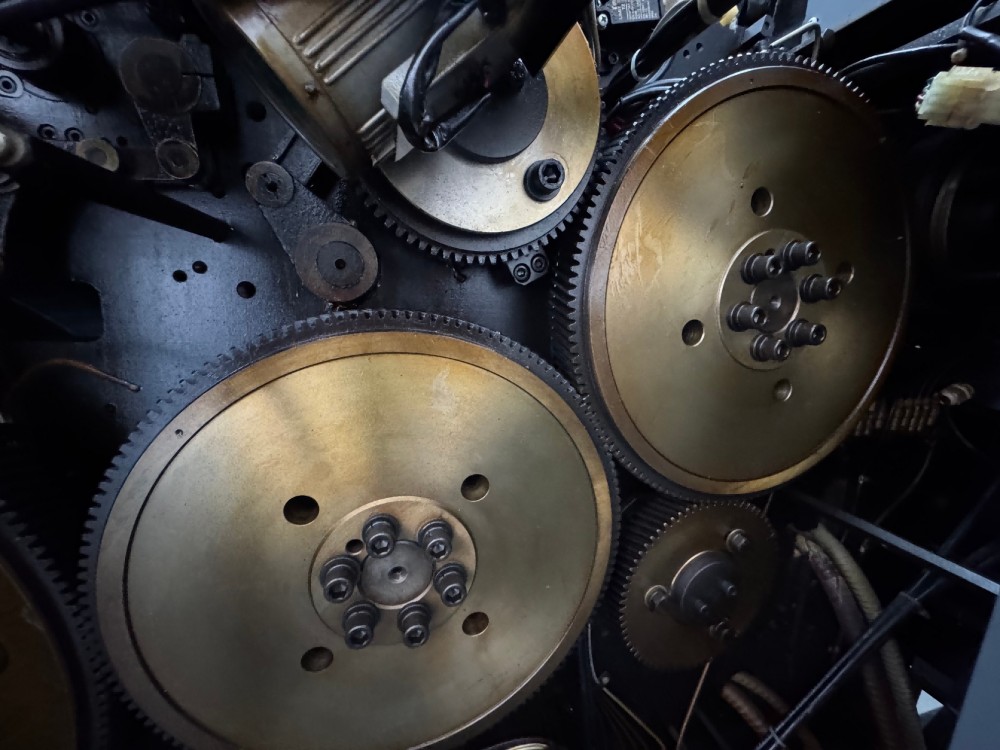

This is the A2 Two-Color Quick Plate Change Printing Offset Printing Press. It’s built for steady, good printing. It has a high-precision system. That system includes high-precision bearings and precision-ground helical gears. These parts keep power moving smoothly and quietly. Its chromed printing cylinders make it more durable. They reduce wear. They also lower maintenance costs. It has a heavy-duty cast iron structure. It uses swing-arm paper feeding, too. And it has double-spring grippers. These features let it print fast and reliably. It works on thin and thick paper. It has safety devices in key spots to keep operators safe and protect the machine. It uses alcohol dampening technology. It has an automatic water volume tracker. It is also equipped with a semi-automatic ink roller cleaning system. These features help keep ink and water balanced and make work faster. In addition its quick plate mounting feature saves time when switching jobs.
